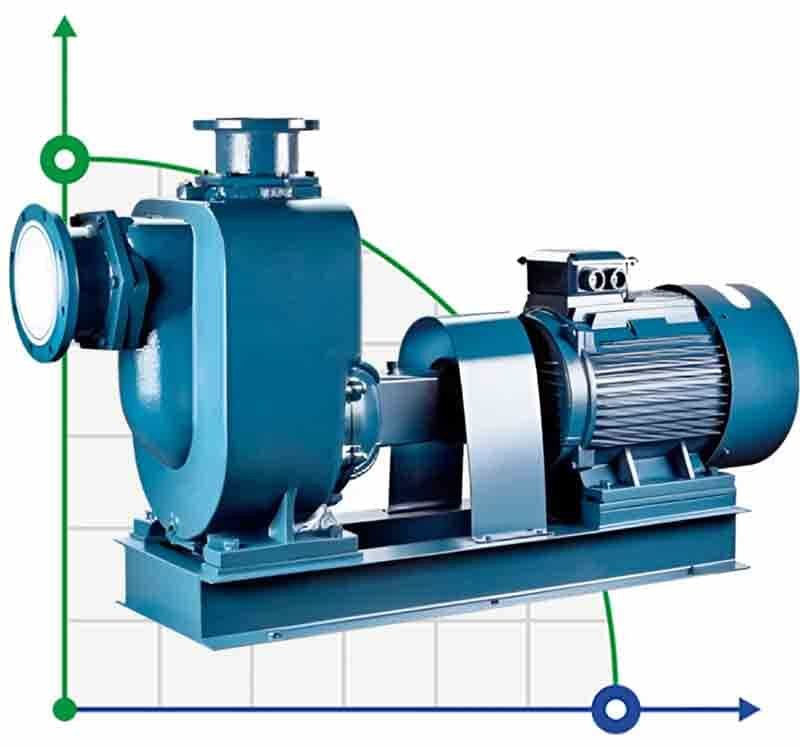

Pump for lagoons BZWM150-180-14/4, 15kW, 1450 self-priming

Code: 1042042
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h180
Feed height, m14
Power capacity, kW15
Materialcast iron
Input pipe diameter150
Output pipe diameter150
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C80
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h180
Nom.head, m14
Serial number of the pumpBZWM
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$4,064 (netto)
Добавить в сравнение
We deliver anywhere in the world
BZWM self-priming sewage pump. Closed type impeller with two blades, with wide channels for clean and dirty liquids with impurities. The pumping part is connected to the motor via a coupling, which guarantees quick recovery of the pump in case of electric drive failures. High electrical and hydraulic efficiency. High self-priming rate without the use of a check valve (4.5 - 6.0 m.v.s.). The self-priming capability is realised due to the presence of a pre-filling chamber in the pump casing. The pumps of this model are suitable for the chemical, oil, pharmaceutical, mining, paper, fibre, pulp, textile, food, power plants and municipal sewage facilities, public sewage, wastewater, river ponds and other industries.
ProducerBTS Engineering
Pump capacity, m3/h180
Feed height, m14
Power capacity, kW15
Materialcast iron
Input pipe diameter150
Output pipe diameter150
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C80
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h180
Nom.head, m14
Serial number of the pumpBZWM
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
