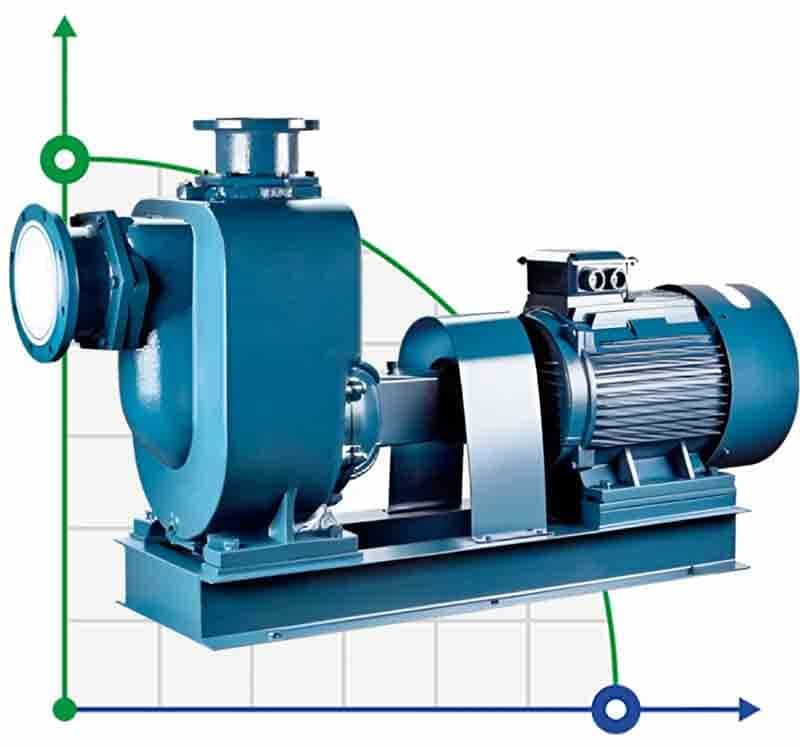

Self-priming wastewater pump BZWM65-25-40/2, 7,5kW, 2900

Code: 1042019
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour25
Feed height, m40
Power capacity, kW7,5
Materialcast iron
Input pipe diameter65
Output pipe diameter65
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C80
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h25
Nom.head, m40
Serial number of the pumpBZWM
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1,733.78 (netto)
Добавить в сравнение
We deliver anywhere in the world
BZWM self-priming sewage pump. Closed type impeller with two blades, with wide channels for clean and dirty liquids with impurities. The pumping part is connected to the motor via a coupling, which guarantees quick recovery of the pump in case of electric drive failures. High electrical and hydraulic efficiency. High self-priming rate without the use of a check valve (4.5 - 6.0 m.v.s.). The self-priming capability is realised due to the presence of a pre-filling chamber in the pump casing. The pumps of this model are suitable for the chemical, oil, pharmaceutical, mining, paper, fibre, pulp, textile, food, power plants and municipal sewage facilities, public sewage, wastewater, river ponds and other industries.
ProducerBTS Engineering
Pump capacity, cu.m/hour25
Feed height, m40
Power capacity, kW7,5
Materialcast iron
Input pipe diameter65
Output pipe diameter65
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C80
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Nom.flow rate, m3/h25
Nom.head, m40
Serial number of the pumpBZWM
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12

Download instructions, catalog for Self-priming wastewater pump BZWM65-25-40/2, 7,5kW, 2900
