Producer | BTS Engineering |
Pump capacity, cu.m/hour | 100 |
Feed height, m | 125 |
Power capacity, kW | 75 |
Material | cast iron |
Input pipe diameter | 100 |
Output pipe diameter | 100 |
Rate of turn, rpm | 2 900 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Material of flow channel | cast iron |
Suction capacity (NPSH), m | 4 |
Nom.flow rate, m3/h | 100 |
Nom.head, m | 125 |
Impeller diameter, mm | 315 |
Serial number of the pump | TKG |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | for systems of water supply, irrigation systems, irrigation, extinguishing, water, cooling tower |
Weight, kg | 685 |
Producer | BTS Engineering |
Pump capacity, cu.m/hour | 100 |
Feed height, m | 125 |
Power capacity, kW | 75 |
Material | cast iron |
Input pipe diameter | 100 |
Output pipe diameter | 100 |
Rate of turn, rpm | 2 900 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Material of flow channel | cast iron |
Suction capacity (NPSH), m | 4 |
Nom.flow rate, m3/h | 100 |
Nom.head, m | 125 |
Impeller diameter, mm | 315 |
Serial number of the pump | TKG |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | for systems of water supply, irrigation systems, irrigation, extinguishing, water, cooling tower |
Weight, kg | 685 |

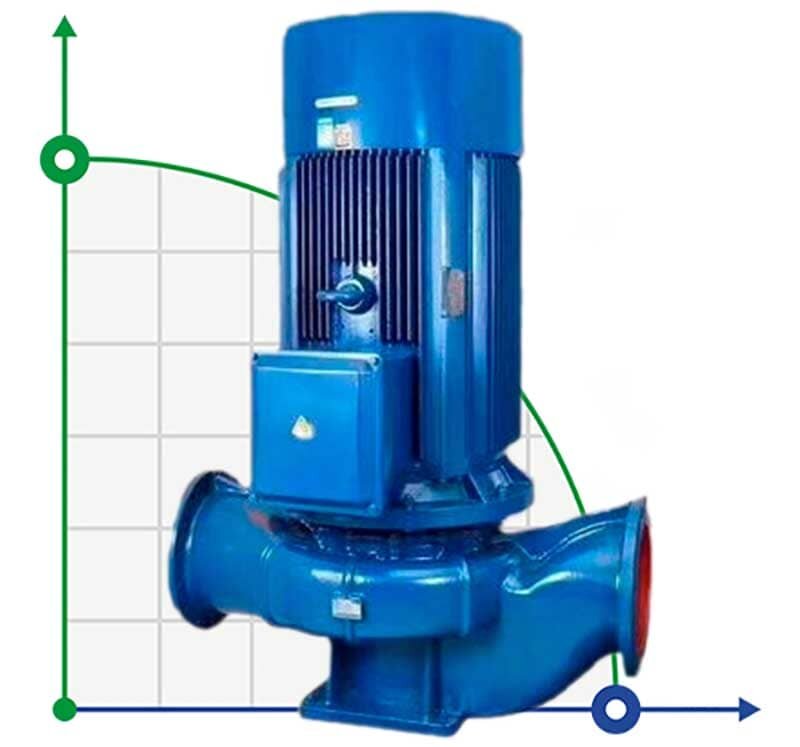

Download instructions, catalog for IRG TKG 100/315-75/2 (100/125), 75 kW, 2900 vertical centrifugal pump
