Producer | BTS Engineering |
Pump capacity, cu.m/hour | 985 |
Feed height, m | 25 |
Power capacity, kW | 110 |
Material | cast iron |
Input pipe diameter | 350 |
Output pipe diameter | 350 |
Rate of turn, rpm | 1 480 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Material of flow channel | cast iron |
Suction capacity (NPSH), m | 6 |
Nom.flow rate, m3/h | 985 |
Nom.head, m | 25 |
Impeller diameter, mm | 345 |
Serial number of the pump | TKG |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | irrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower |
Weight, kg | 1 500 |
Producer | BTS Engineering |
Pump capacity, cu.m/hour | 985 |
Feed height, m | 25 |
Power capacity, kW | 110 |
Material | cast iron |
Input pipe diameter | 350 |
Output pipe diameter | 350 |
Rate of turn, rpm | 1 480 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Material of flow channel | cast iron |
Suction capacity (NPSH), m | 6 |
Nom.flow rate, m3/h | 985 |
Nom.head, m | 25 |
Impeller diameter, mm | 345 |
Serial number of the pump | TKG |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | irrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower |
Weight, kg | 1 500 |

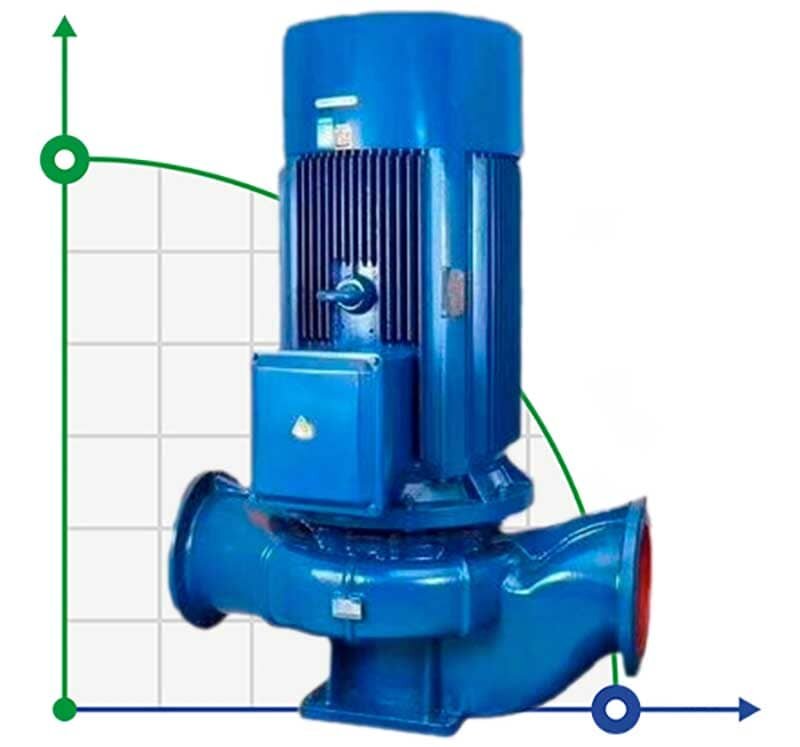

Download instructions, catalog for IRG TKG 350/345-110/4 (985/25), 110 kW, 1480 vertical centrifugal pump
