Producer | BTS Engineering |
Pump capacity, cu.m/hour | 2.8 |
Feed height, m | 16 |
Power capacity, kW | 0,75 |
Material | cast iron |
Input pipe diameter | 40 |
Output pipe diameter | 40 |
Rate of turn, rpm | 1 450 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Material of flow channel | cast iron |
Suction capacity (NPSH), m | 2,5 |
Nom.flow rate, m3/h | 2.8 |
Nom.head, m | 16 |
Impeller diameter, mm | 235 |
Serial number of the pump | TKG |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | irrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower |
Weight, kg | 47 |
Producer | BTS Engineering |
Pump capacity, cu.m/hour | 2.8 |
Feed height, m | 16 |
Power capacity, kW | 0,75 |
Material | cast iron |
Input pipe diameter | 40 |
Output pipe diameter | 40 |
Rate of turn, rpm | 1 450 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Material of flow channel | cast iron |
Suction capacity (NPSH), m | 2,5 |
Nom.flow rate, m3/h | 2.8 |
Nom.head, m | 16 |
Impeller diameter, mm | 235 |
Serial number of the pump | TKG |
Country of Origin | China |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Type of configuration | with engine |
Warranty, months | 12 |
Application | irrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower |
Weight, kg | 47 |

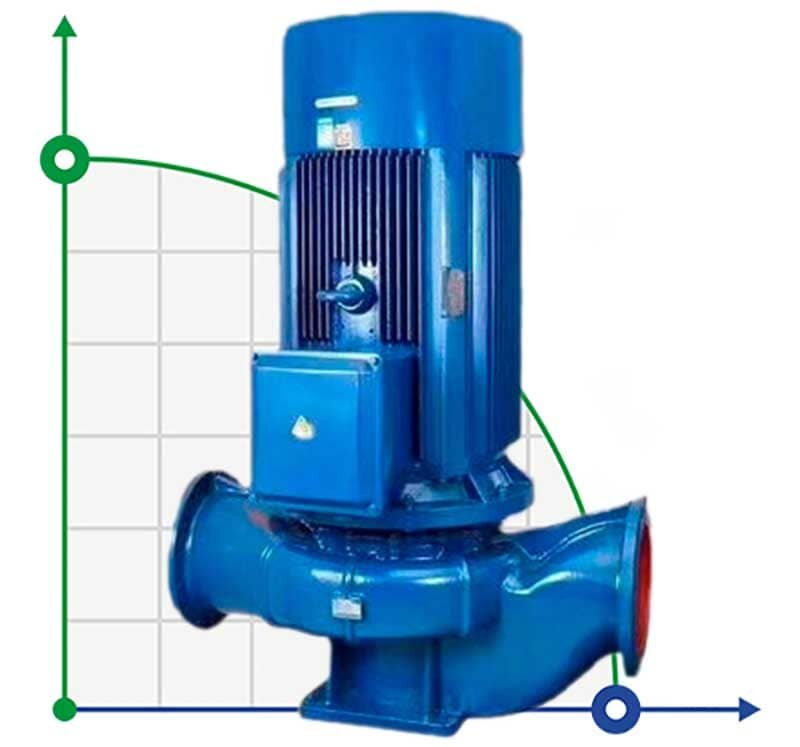

Download instructions, catalog for IRG TKG 40/235-0.75/4 (2.8/16), 0.75 kW, 1450 vertical centrifugal pump
