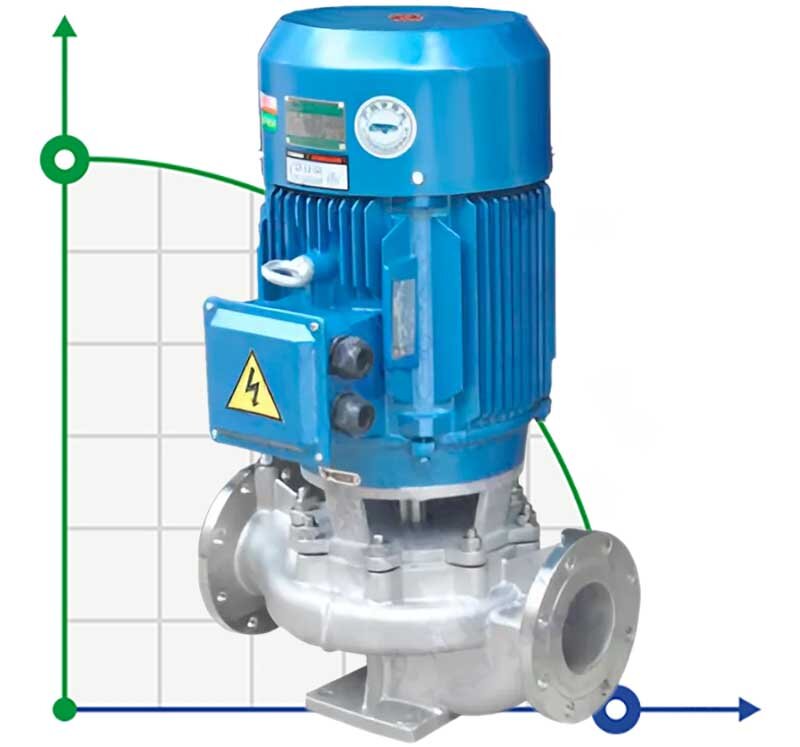

IHG TKHG 125/315-90/2 (160/125), 90 kW, AISI 304, 2900 stainless in-line pump
Click image for a larger view
IHG TKHG 125/315-90/2 (160/125), 90 kW, AISI 304, 2900 stainless in-line pump
IHG TKHG 125/315-90/2 (160/125), 90 kW, AISI 304, 2900 stainless in-line pump
IHG TKHG 125/315-90/2 (160/125), 90 kW, AISI 304, 2900 stainless in-line pump
IHG TKHG 125/315-90/2 (160/125), 90 kW, AISI 304, 2900 stainless in-line pump
IHG TKHG 125/315-90/2 (160/125), 90 kW, AISI 304, 2900 stainless in-line pump

IHG TKHG 125/315-90/2 (160/125), 90 kW, AISI 304, 2900 stainless in-line pump

Code: 1048086
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour160
Feed height, m125
Power capacity, kW90
MaterialAISI 304 stainless steel
Input pipe diameter125
Output pipe diameter125
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionNo
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m4,5
Nom.flow rate, m3/h160
Nom.head, m125
Impeller diameter, mm315
Serial number of the pumpTKHG
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg810
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$13,636.81 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps of the TKHG series made of AISI 304 stainless steel (body, shaft, impeller) are used for pumping liquid food products: juice, milk, dairy products, beer, alcohol, salt solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, seawater, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping civet oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour160
Feed height, m125
Power capacity, kW90
MaterialAISI 304 stainless steel
Input pipe diameter125
Output pipe diameter125
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionNo
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m4,5
Nom.flow rate, m3/h160
Nom.head, m125
Impeller diameter, mm315
Serial number of the pumpTKHG
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg810

Download instructions, catalog for IHG TKHG 125/315-90/2 (160/125), 90 kW, AISI 304, 2900 stainless in-line pump
