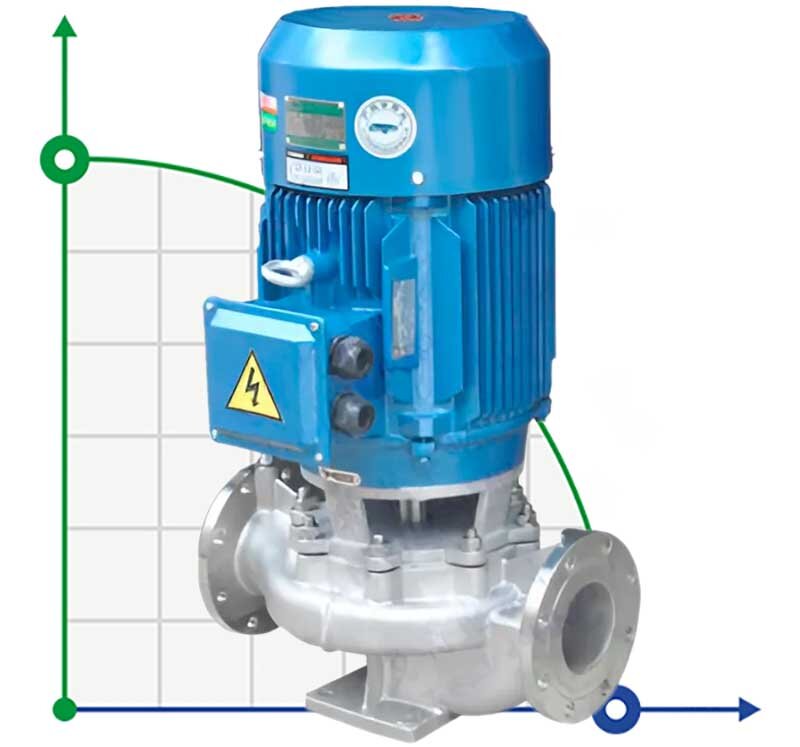

Coagulant pump stainless IHG TKHG 40/220-0.55/4 (2.3/13), 0.55 kW, AISI 304, 1450
Click image for a larger view
Coagulant pump stainless IHG TKHG 40/220-0.55/4 (2.3/13), 0.55 kW, AISI 304, 1450
Coagulant pump stainless IHG TKHG 40/220-0.55/4 (2.3/13), 0.55 kW, AISI 304, 1450
Coagulant pump stainless IHG TKHG 40/220-0.55/4 (2.3/13), 0.55 kW, AISI 304, 1450
Coagulant pump stainless IHG TKHG 40/220-0.55/4 (2.3/13), 0.55 kW, AISI 304, 1450
Coagulant pump stainless IHG TKHG 40/220-0.55/4 (2.3/13), 0.55 kW, AISI 304, 1450

Coagulant pump stainless IHG TKHG 40/220-0.55/4 (2.3/13), 0.55 kW, AISI 304, 1450

Code: 1047896
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour2.3
Feed height, m13
Power capacity, kW0,55
MaterialAISI 304 stainless steel
Input pipe diameter40
Output pipe diameter40
Rate of turn, rpm1 450
Power supply3х380 V, 50 Hz
Explosion protectionNo
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m2,5
Nom.flow rate, m3/h2.3
Nom.head, m13
Impeller diameter, mm220
Serial number of the pumpTKHG
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationcaustic, wort, abrasive fluids, bards, vulture washing, food, oils, alkalis, paints, coagulant, acid
Weight, kg46
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps of the TKHG series made of AISI 304 stainless steel (body, shaft, impeller) are used for pumping liquid food products: juice, milk, dairy products, beer, alcohol, salt solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, seawater, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping civet oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour2.3
Feed height, m13
Power capacity, kW0,55
MaterialAISI 304 stainless steel
Input pipe diameter40
Output pipe diameter40
Rate of turn, rpm1 450
Power supply3х380 V, 50 Hz
Explosion protectionNo
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m2,5
Nom.flow rate, m3/h2.3
Nom.head, m13
Impeller diameter, mm220
Serial number of the pumpTKHG
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationcaustic, wort, abrasive fluids, bards, vulture washing, food, oils, alkalis, paints, coagulant, acid
Weight, kg46

Download instructions, catalog for Coagulant pump stainless IHG TKHG 40/220-0.55/4 (2.3/13), 0.55 kW, AISI 304, 1450
