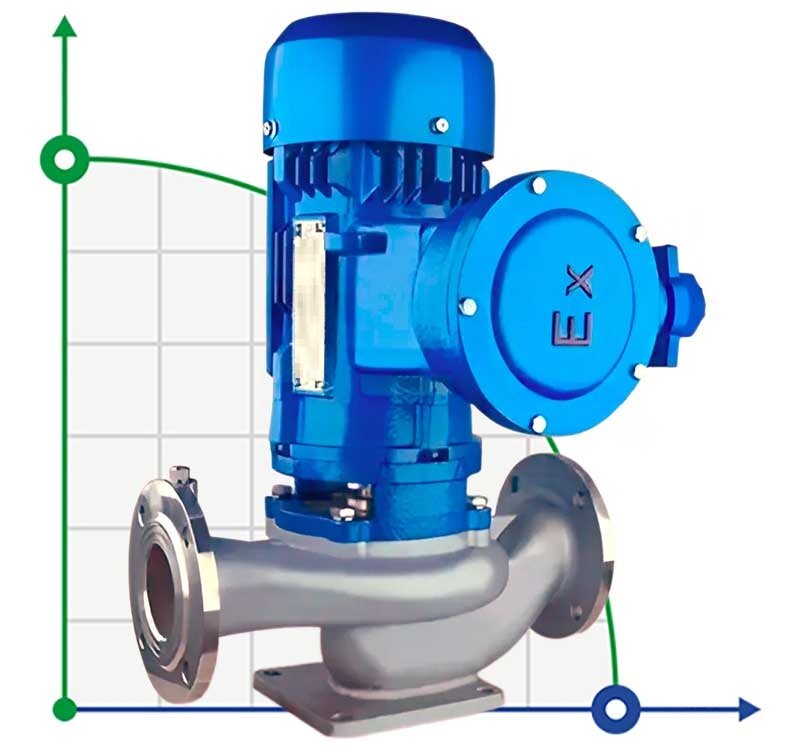

IHG TKHGB 40/235-0.75/4 (2.8/16), 0.75 kW, AISI 304, 1450, Ex pump stainless in-line
Click image for a larger view
IHG TKHGB 40/235-0.75/4 (2.8/16), 0.75 kW, AISI 304, 1450, Ex pump stainless in-line
IHG TKHGB 40/235-0.75/4 (2.8/16), 0.75 kW, AISI 304, 1450, Ex pump stainless in-line
IHG TKHGB 40/235-0.75/4 (2.8/16), 0.75 kW, AISI 304, 1450, Ex pump stainless in-line
IHG TKHGB 40/235-0.75/4 (2.8/16), 0.75 kW, AISI 304, 1450, Ex pump stainless in-line
IHG TKHGB 40/235-0.75/4 (2.8/16), 0.75 kW, AISI 304, 1450, Ex pump stainless in-line

IHG TKHGB 40/235-0.75/4 (2.8/16), 0.75 kW, AISI 304, 1450, Ex pump stainless in-line

Code: 1048722
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour2.8
Feed height, m16
Power capacity, kW0,75
MaterialAISI 304 stainless steel
Input pipe diameter40
Output pipe diameter40
Rate of turn, rpm1 450
Power supply3х380 V, 50 Hz
Explosion protectionYes
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m2,5
Nom.flow rate, m3/h2.8
Nom.head, m16
Impeller diameter, mm235
Serial number of the pumpTKHGB
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg47
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Industrial centrifugal in-line pumps of the TKHGB series with explosion-proof electric motor Ex. For pumping chemically aggressive liquids, salt solutions, sea water, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing of equipment. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping fescue oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour2.8
Feed height, m16
Power capacity, kW0,75
MaterialAISI 304 stainless steel
Input pipe diameter40
Output pipe diameter40
Rate of turn, rpm1 450
Power supply3х380 V, 50 Hz
Explosion protectionYes
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m2,5
Nom.flow rate, m3/h2.8
Nom.head, m16
Impeller diameter, mm235
Serial number of the pumpTKHGB
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg47

Download instructions, catalog for IHG TKHGB 40/235-0.75/4 (2.8/16), 0.75 kW, AISI 304, 1450, Ex pump stainless in-line
