IHG TKHGB 80/220-30/2 (87/60), 30 kW, AISI 304, 2900, Ex pump stainless in-line
Click image for a larger view
IHG TKHGB 80/220-30/2 (87/60), 30 kW, AISI 304, 2900, Ex pump stainless in-line
IHG TKHGB 80/220-30/2 (87/60), 30 kW, AISI 304, 2900, Ex pump stainless in-line
IHG TKHGB 80/220-30/2 (87/60), 30 kW, AISI 304, 2900, Ex pump stainless in-line
IHG TKHGB 80/220-30/2 (87/60), 30 kW, AISI 304, 2900, Ex pump stainless in-line
IHG TKHGB 80/220-30/2 (87/60), 30 kW, AISI 304, 2900, Ex pump stainless in-line

IHG TKHGB 80/220-30/2 (87/60), 30 kW, AISI 304, 2900, Ex pump stainless in-line

Code: 1048854
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour87
Feed height, m60
Power capacity, kW30
MaterialAISI 304 stainless steel
Input pipe diameter80
Output pipe diameter80
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionYes
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m4
Nom.flow rate, m3/h87
Nom.head, m60
Impeller diameter, mm220
Serial number of the pumpTKHGB
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg330
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$8,321.99 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial centrifugal in-line pumps of the TKHGB series with explosion-proof electric motor Ex. For pumping chemically aggressive liquids, salt solutions, sea water, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing of equipment. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping fescue oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour87
Feed height, m60
Power capacity, kW30
MaterialAISI 304 stainless steel
Input pipe diameter80
Output pipe diameter80
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionYes
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m4
Nom.flow rate, m3/h87
Nom.head, m60
Impeller diameter, mm220
Serial number of the pumpTKHGB
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg330

Download instructions, catalog for IHG TKHGB 80/220-30/2 (87/60), 30 kW, AISI 304, 2900, Ex pump stainless in-line

Loading...
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
1042834
Producer
BTS Engineering
Power capacity, kW
0,75-4
In stock
0
$135.86
PN16 DN125 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
PN16 DN125 Butterfly valve, body and disc made of stainless steel AISI 304, S...
1042543
Connection diameter, DN
125
Material of the disk
AISI 304 stainless steel
In stock
0
$161.09
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
1042833
Producer
BTS Engineering
Power capacity, kW
0,37-3
In stock
0
$90.59
PN16 DN40 Stainless steel ball valve AISI 316, seat PTFE
PN16 DN40 Stainless steel ball valve AISI 316, seat PTFE
1040598
Connection diameter, DN
40
Producer
BTS Engineering
In stock
0
$201.09
DN50 Thermodynamic flanged condensate trap PN16/1.0619
DN50 Thermodynamic flanged condensate trap PN16/1.0619
1040125
Connection diameter, DN
50
Producer
BTS Engineering
In stock
0
$531.58
PN16 DN150 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
PN16 DN150 Butterfly valve, body and disc made of stainless steel AISI 304, S...
1042544
Connection diameter, DN
150
Material of the disk
AISI 304 stainless steel
In stock
0
$192.64
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, ...
1040256
Connection diameter, DN
25
Control signal, mA
4-20
Preorder
0
$2,371.63
Control panel for pump, 4 kW
Control panel for pump, 4 kW
16607
Producer
BTS Engineering
Power capacity, kW
4
In stock
0
$470.20
PN16 DN125 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN125 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042552
Connection diameter, DN
125
Material of the disk
AISI 304 stainless steel
In stock
0
$64.97
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
1042835
Producer
BTS Engineering
Power capacity, kW
1,1-7,5
In stock
0
$144.39
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042553
Connection diameter, DN
150
Material of the disk
AISI 304 stainless steel
In stock
0
$83.47
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
1042836
Producer
BTS Engineering
Power capacity, kW
1,1-11
In stock
0
$155.70
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
1042837
Producer
BTS Engineering
Power capacity, kW
2,2-15
In stock
0
$181.17
Control panel for pump, 1.5 kW
Control panel for pump, 1.5 kW
16606
Producer
BTS Engineering
Power capacity, kW
1,5
In stock
0
$248.38
Control panel for pump, 3 kW
Control panel for pump, 3 kW
16604
Producer
BTS Engineering
Power capacity, kW
3
In stock
0
$457.34
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
1042838
Producer
BTS Engineering
Power capacity, kW
3-18,5
In stock
0
$220.78
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
1042839
Producer
BTS Engineering
Power capacity, kW
4-22
In stock
0
$260.42
Control panel for pump, 5.5 kW
Control panel for pump, 5.5 kW
16610
Producer
BTS Engineering
Power capacity, kW
5,5
In stock
0
$485.99
Control panel for pump, 2.2 kW
Control panel for pump, 2.2 kW
16605
Producer
BTS Engineering
Power capacity, kW
2,2
In stock
0
$332.18
Control panel for pump, 7.5 kW
Control panel for pump, 7.5 kW
16608
Producer
BTS Engineering
Power capacity, kW
7,5
In stock
0
$493.49
PN16 DN32 Stainless steel ball valve AISI 316, seat PTFE
PN16 DN32 Stainless steel ball valve AISI 316, seat PTFE
1040109
Connection diameter, DN
32
Producer
BTS Engineering
In stock
0
$167.05
Control panel for pump, 22 kW
Control panel for pump, 22 kW
16613
Producer
BTS Engineering
Power capacity, kW
22
In stock
0
$1,896.86
Control panel for pump, 11 kW
Control panel for pump, 11 kW
16609
Producer
BTS Engineering
Power capacity, kW
11
In stock
0
$509.57
Control panel for pump, 18.5 kW
Control panel for pump, 18.5 kW
16612
Producer
BTS Engineering
Power capacity, kW
18,5
In stock
0
$823.76
Control panel for pump, 15 kW
Control panel for pump, 15 kW
16611
Producer
BTS Engineering
Power capacity, kW
15
Preorder
0
$683.06
Products from the same category
IHG TKHGB 80/200-22/2 (100/50), 22 kW, AISI 304, 2900, Ex pump stainless in-line
IHG TKHGB 80/200-22/2 (100/50), 22 kW, AISI 304, 2900, Ex pump stainless in-line
1048849
Producer
BTS Engineering
Pump capacity, cu.m/hour
100
Preorder
0
$5,958.65

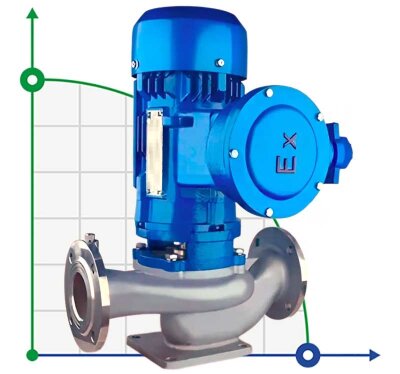

IHG TKHGB 80/185-18.5/2 (93.5/44), 18.5 kW, AISI 304, 2900, Ex pump stainless in-line
