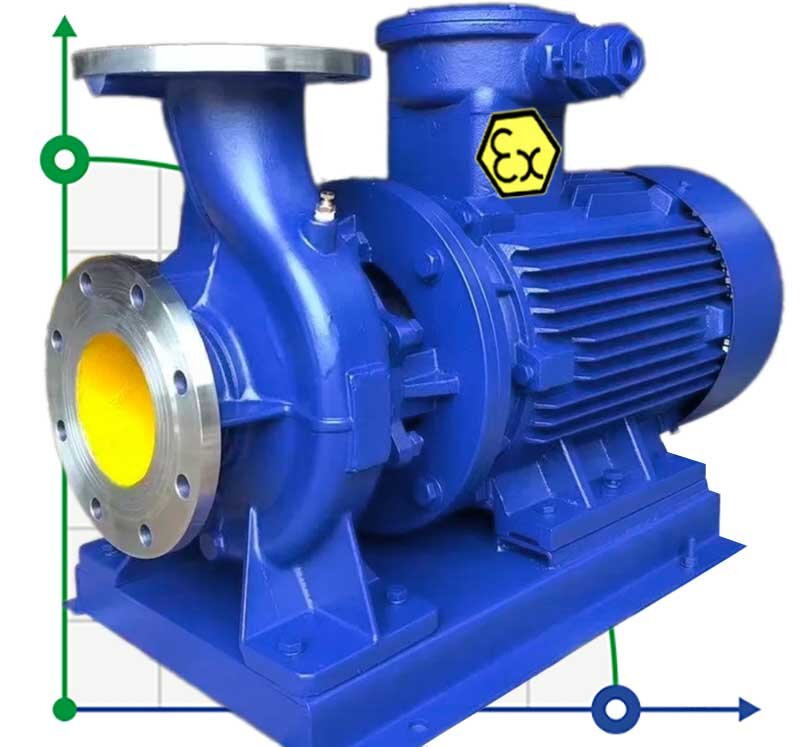

TKHWB 200/185-11/4 (179/10), 11 kW, AISI 304, 1480, Ex horizontal stainless steel pump
Click image for a larger view
TKHWB 200/185-11/4 (179/10), 11 kW, AISI 304, 1480, Ex horizontal stainless steel pump
TKHWB 200/185-11/4 (179/10), 11 kW, AISI 304, 1480, Ex horizontal stainless steel pump
TKHWB 200/185-11/4 (179/10), 11 kW, AISI 304, 1480, Ex horizontal stainless steel pump
TKHWB 200/185-11/4 (179/10), 11 kW, AISI 304, 1480, Ex horizontal stainless steel pump
TKHWB 200/185-11/4 (179/10), 11 kW, AISI 304, 1480, Ex horizontal stainless steel pump

TKHWB 200/185-11/4 (179/10), 11 kW, AISI 304, 1480, Ex horizontal stainless steel pump

Code: 1049395
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour179
Feed height, m10
Power capacity, kW11
MaterialAISI 304 stainless steel
Input pipe diameter200
Output pipe diameter200
Rate of turn, rpm1 480
Power supply3х380 V, 50 Hz
Explosion protectionYes
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m3
Nom.flow rate, m3/h179
Nom.head, m10
Impeller diameter, mm185
Serial number of the pumpTKHWB
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg250
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$6,310.66 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial horizontal centrifugal pumps of the TKHWB series with explosion-proof electric motor Ex. For pumping chemically aggressive liquids, salt solutions, seawater, alkalis, acid solutions, mineral fertilisers UAN, caustic solutions for SIP equipment washing. For distilleries and breweries - for pumping batch, wort, used as a GDFO pump, mash and bards. It is also ideal for pumping fusel oils and alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration plants, permeate and filtrate supply.
Category: Centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour179
Feed height, m10
Power capacity, kW11
MaterialAISI 304 stainless steel
Input pipe diameter200
Output pipe diameter200
Rate of turn, rpm1 480
Power supply3х380 V, 50 Hz
Explosion protectionYes
Material of flow channelAISI 304 stainless steel
Suction capacity (NPSH), m3
Nom.flow rate, m3/h179
Nom.head, m10
Impeller diameter, mm185
Serial number of the pumpTKHWB
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationwort, abrasive fluids, bards, vulture washing, caustic, food, oils, alkalis, paints, coagulant, acid
Weight, kg250

Download instructions, catalog for TKHWB 200/185-11/4 (179/10), 11 kW, AISI 304, 1480, Ex horizontal stainless steel pump
