| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 358 |
| Feed height, m | 17 |
| Power capacity, kW | 22 |
| Material | cast iron |
| Input pipe diameter | 200 |
| Output pipe diameter | 200 |
| Rate of turn, rpm | 1 480 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Material of flow channel | cast iron |
| Suction capacity (NPSH), m | 4 |
| Nom.flow rate, m3/h | 358 |
| Nom.head, m | 17 |
| Impeller diameter, mm | 235 |
| Serial number of the pump | TKW |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | irrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower |
| Weight, kg | 720 |
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 358 |
| Feed height, m | 17 |
| Power capacity, kW | 22 |
| Material | cast iron |
| Input pipe diameter | 200 |
| Output pipe diameter | 200 |
| Rate of turn, rpm | 1 480 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Material of flow channel | cast iron |
| Suction capacity (NPSH), m | 4 |
| Nom.flow rate, m3/h | 358 |
| Nom.head, m | 17 |
| Impeller diameter, mm | 235 |
| Serial number of the pump | TKW |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | irrigation systems, irrigation, extinguishing, for systems of water supply, water, cooling tower |
| Weight, kg | 720 |

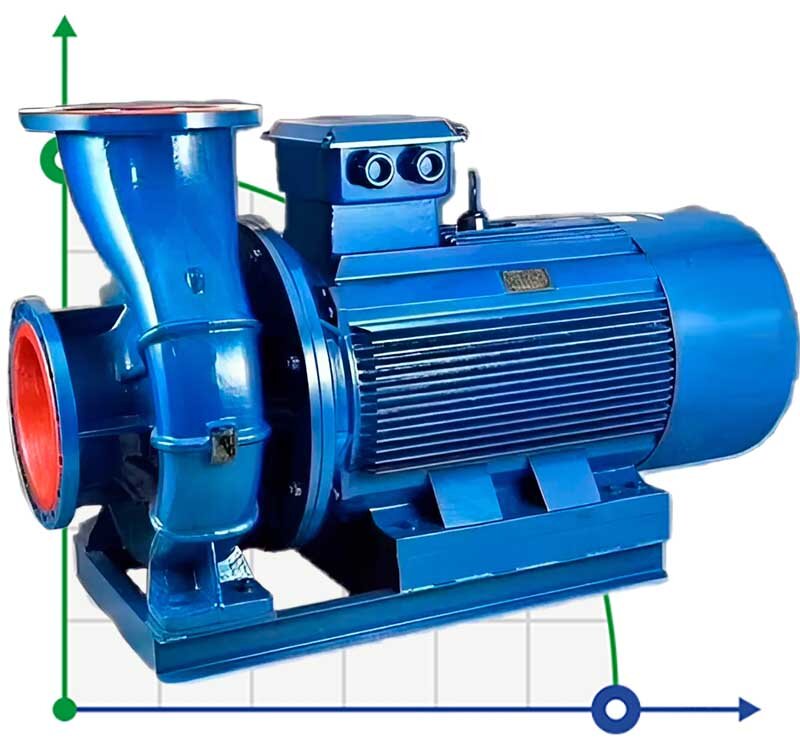

Download instructions, catalog for TKW 200/235-22/4 (358/17), 22 kW, 1480 нorizontal centrifugal pump
