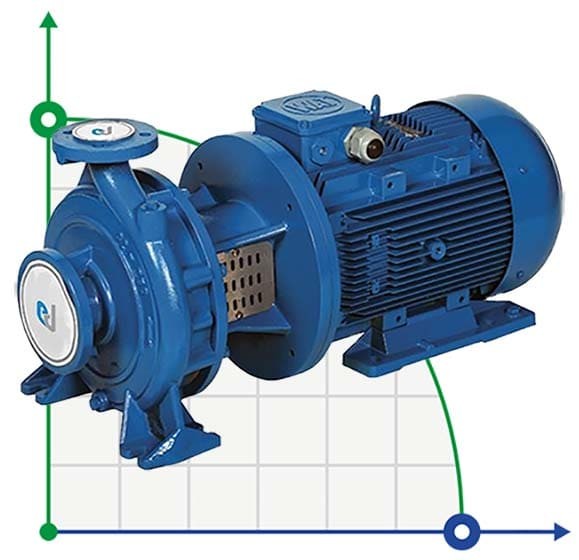

Monoblock drying pump ETKF-M 100-400, 45 kW, 1500

Code: 1037126
(0 review)
ProducerERDURO
Pump capacity, cu.m/hour240
Feed height, m60
Power capacity, kW45
Materialcast iron
Input pipe diameterDN125
Output pipe diameterDN100
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h240
Max.temperature, C100
Max. head, m60
SealMechanical Seal
Impeller materialcast iron
Housing materialСast iron
Impeller diameter, mm416
Serial number of the pumpETKF-M
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationglaze, heating, drying, cooling tower, ice water, the drying chamber, water, increasing pressure, water recycling, circulation
Analogue forEbara 3D, Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, CALPEDA NM
Weight, kg580
Show all features (26)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$11,296.16 (netto)
Добавить в сравнение
We deliver anywhere in the world
ETKF-M centrifugal monoblock pumps with a coupling connection are designed for pumping non-abrasive clean and conditionally clean liquids. The pump dimensions comply with the TS EN 733 standard. The suction and discharge flanges comply with the ISO 7005-2/PN 16 standard. Sealing of the working chamber is provided by a mechanical seal. A closed impeller is used. Application: agricultural irrigation and sprinkling; heating and cooling systems; fire extinguishing systems; for drainage, and other industrial purposes. Technical data: discharge flange: DN32 ... DN150. Capacity: up to 550 m3/h. Height: 105 m. Speed: 1450-3600 rpm (50 Hz-60 Hz). Operating temperature: -10°C ' to +105°C. Housing pressure (Pmax): 10 Bar (16 bar).
ProducerERDURO
Pump capacity, cu.m/hour240
Feed height, m60
Power capacity, kW45
Materialcast iron
Input pipe diameterDN125
Output pipe diameterDN100
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h240
Max.temperature, C100
Max. head, m60
SealMechanical Seal
Impeller materialcast iron
Housing materialСast iron
Impeller diameter, mm416
Serial number of the pumpETKF-M
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationglaze, heating, drying, cooling tower, ice water, the drying chamber, water, increasing pressure, water recycling, circulation
Analogue forEbara 3D, Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, CALPEDA NM
Weight, kg580
