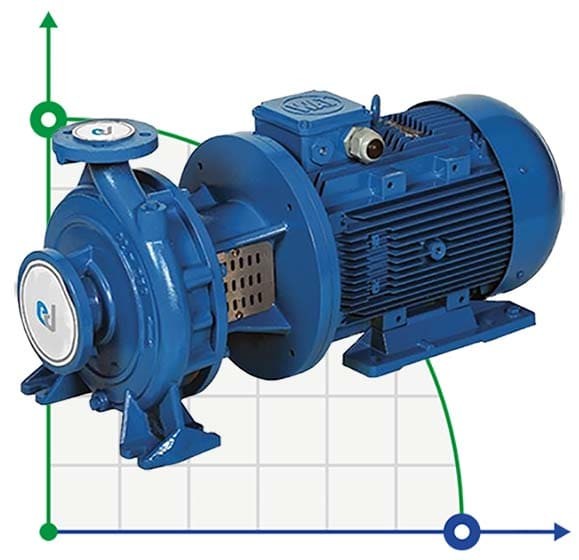

Monoblock irrigation pump ETKF-M 40-160, 0,75 kW, 1500
Click image for a larger view
Monoblock irrigation pump ETKF-M 40-160, 0,75 kW, 1500
Monoblock irrigation pump ETKF-M 40-160, 0,75 kW, 1500
Monoblock irrigation pump ETKF-M 40-160, 0,75 kW, 1500
Monoblock irrigation pump ETKF-M 40-160, 0,75 kW, 1500
Monoblock irrigation pump ETKF-M 40-160, 0,75 kW, 1500

Monoblock irrigation pump ETKF-M 40-160, 0,75 kW, 1500

Code: 1037034
(0 review)
ProducerERDURO
Pump capacity, cu.m/hour21
Feed height, m10.8
Power capacity, kW0,75
Materialcast iron
Input pipe diameterDN65
Output pipe diameterDN40
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h21
Max.temperature, C100
Max. head, m10.8
SealMechanical Seal
Impeller materialcast iron
Housing materialСast iron
Impeller diameter, mm175
Serial number of the pumpETKF-M
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationthe drying chamber, heating, drying, cooling tower, ice water, glaze, water, increasing pressure, water recycling, circulation
Analogue forPedrollo HF, Speroni CS, Speroni MEM, Speroni CFM, Ebara 3D, CALPEDA NM
Weight, kg38
Show all features (26)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1,186.13 (netto)
Добавить в сравнение
We deliver anywhere in the world
ETKF-M centrifugal monoblock pumps with a coupling connection are designed for pumping non-abrasive clean and conditionally clean liquids. The pump dimensions comply with the TS EN 733 standard. The suction and discharge flanges comply with the ISO 7005-2/PN 16 standard. Sealing of the working chamber is provided by a mechanical seal. A closed impeller is used. Application: agricultural irrigation and sprinkling; heating and cooling systems; fire extinguishing systems; for drainage, and other industrial purposes. Technical data: discharge flange: DN32 ... DN150. Capacity: up to 550 m3/h. Height: 105 m. Speed: 1450-3600 rpm (50 Hz-60 Hz). Operating temperature: -10°C ' to +105°C. Housing pressure (Pmax): 10 Bar (16 bar).
Categories: Centrifugal pumpPump for water supplyWater pumpPump for heating systems
ProducerERDURO
Pump capacity, cu.m/hour21
Feed height, m10.8
Power capacity, kW0,75
Materialcast iron
Input pipe diameterDN65
Output pipe diameterDN40
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h21
Max.temperature, C100
Max. head, m10.8
SealMechanical Seal
Impeller materialcast iron
Housing materialСast iron
Impeller diameter, mm175
Serial number of the pumpETKF-M
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationthe drying chamber, heating, drying, cooling tower, ice water, glaze, water, increasing pressure, water recycling, circulation
Analogue forPedrollo HF, Speroni CS, Speroni MEM, Speroni CFM, Ebara 3D, CALPEDA NM
Weight, kg38
