Producer | BTS Engineering |
Pump capacity, cu.m/hour | 42 |
Feed height, m | 16 |
Power capacity, kW | 1,5 |
Material | AISI 304 stainless steel |
Input pipe diameter | G2 |
Output pipe diameter | G2 |
Rate of turn, rpm | 2 900 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Max.flow rate, m3/h | 42 |
Max.temperature, C | 80 |
Material of flow channel | AISI 304 stainless steel |
Max. head, m | 16 |
Seal | Mechanical Seal, CAR/SIC/VITON |
Dimensions, mm | 409x193x253 |
Serial number of the pump | BB |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Weight, kg | 16,3 |
Producer | BTS Engineering |
Pump capacity, cu.m/hour | 42 |
Feed height, m | 16 |
Power capacity, kW | 1,5 |
Material | AISI 304 stainless steel |
Input pipe diameter | G2 |
Output pipe diameter | G2 |
Rate of turn, rpm | 2 900 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
Max.flow rate, m3/h | 42 |
Max.temperature, C | 80 |
Material of flow channel | AISI 304 stainless steel |
Max. head, m | 16 |
Seal | Mechanical Seal, CAR/SIC/VITON |
Dimensions, mm | 409x193x253 |
Serial number of the pump | BB |
Country of Origin | China |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Weight, kg | 16,3 |

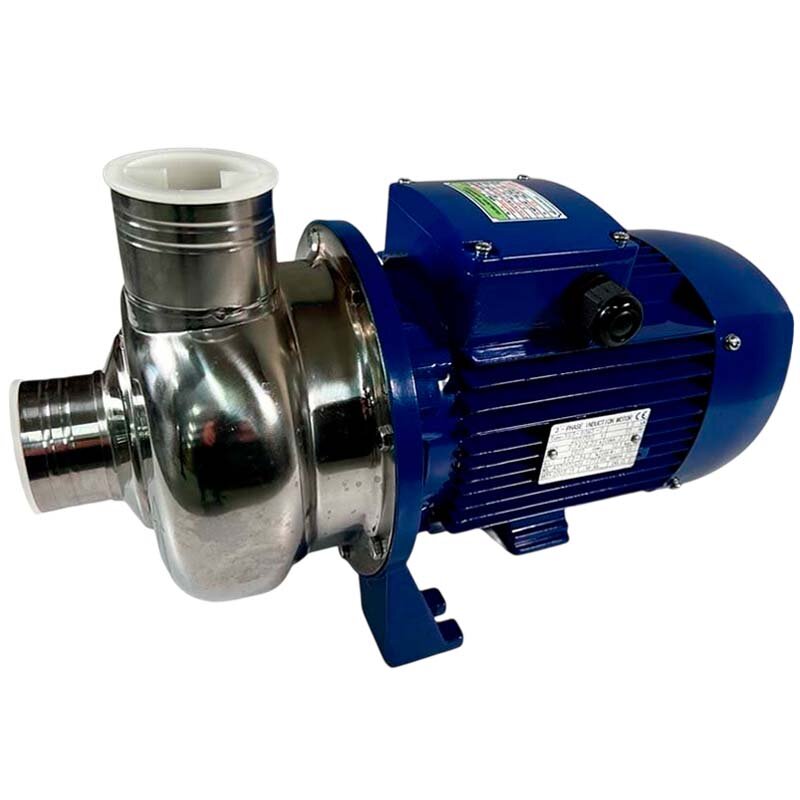

Download instructions, catalog for Centrifugal pump BB500/150, AISI304, 380V/50Hz, 2900
