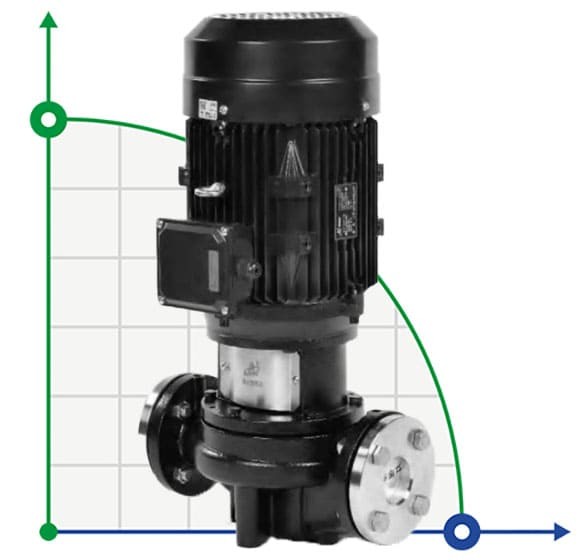

Vertical high temperature pump AGD-10 -30°C+200°C

Code: 1039239
(0 review)
Temperature (min), °C-30
ProducerALUNAK
Pump capacity, cu.m/hour8
Feed height, m14
Power capacity, kW0,75
Input pipe diameterDN32
Output pipe diameterDN32
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h8
Max.temperature, C200
Flow rate, l/min133
Nom.head, m14
Pressure, bar10
Operating temperaturethermal conductivity water +5˚С~+160˚С; thermal conductivity oil +5˚С~+200˚С; ethylene glycol -30˚С~+180˚С
Serial number of the pumpAGD
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Weight, kg33
Show all features (22)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Vertical pump design in-line AGD for low and high temperatures. Single-stage centrifugal pump made with direct connection. This series of pumps has the advantages of high efficiency and energy saving, low noise, low vibration, high and low temperature stability and reliable performance. Scope of application: temperature control equipment, heating systems, ventilation, air conditioning, liquid pumping, water supply systems, high-quality printing and dyeing equipment, high-temperature condensate recycling. Circulation medium: this pump is suitable for pumping clean, non-erosive, flammable and explosive liquids that do not contain solid particles, fibers and have physical and chemical properties similar to water.
Temperature (min), °C-30
ProducerALUNAK
Pump capacity, cu.m/hour8
Feed height, m14
Power capacity, kW0,75
Input pipe diameterDN32
Output pipe diameterDN32
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h8
Max.temperature, C200
Flow rate, l/min133
Nom.head, m14
Pressure, bar10
Operating temperaturethermal conductivity water +5˚С~+160˚С; thermal conductivity oil +5˚С~+200˚С; ethylene glycol -30˚С~+180˚С
Serial number of the pumpAGD
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Weight, kg33

Download instructions, catalog for Vertical high temperature pump AGD-10 -30°C+200°C
