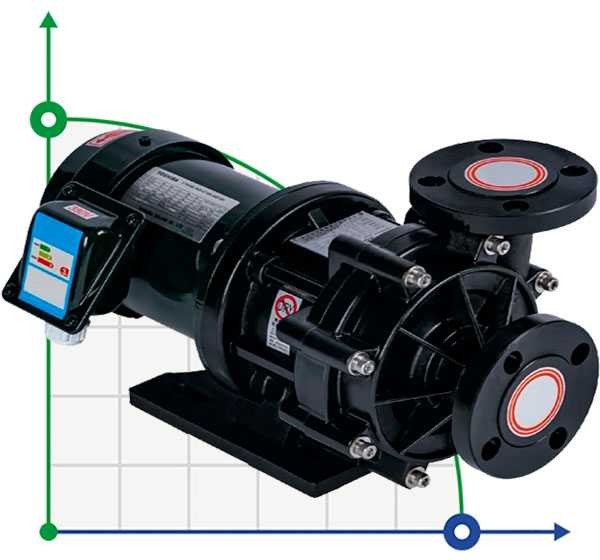

Chemical pump for alkali,acid, filtration, electrolyte, electroplating, hypochloride, nitric acid.
Pumps with a magnetic coupling, unlike other chemical pumps, have a significant feature - the design of these pumps does not use an end seal, oil seal or other sealing element of this type.
The working body is driven by a magnetic field, the working chamber and the drive shaft are separated by a non-moving casing made of chemically resistant material. This eliminates the possibility of liquid leakage from the working chamber.
The magnetic coupling is not afraid of solid particles in the liquid, there is no possibility of leakage, which is not unimportant when pumping chemically active and explosive liquids.
Unlike mechanically sealed pumps, pumps equipped with a magnetic coupling do not require maintenance (which saves money and time).
Technical specifications:
Inlet and outlet pipe: 50x40 mm
Engine: TOSHIBA
Engine power: 3.7 kW
Power supply: 50HZ 3Ø-380V
Feed height (max): 35 m
Capacity (max): 500 l / min
Pump analogues:
- AGRAL TMB series, TMP, TMR, FLUIMAC CM Series, IWAKI, Finish Thompson Ins, Kaix MDP series, Gemme Cotti HTM series, Crystal XCM Series, M Pumps CM MAG-P series
