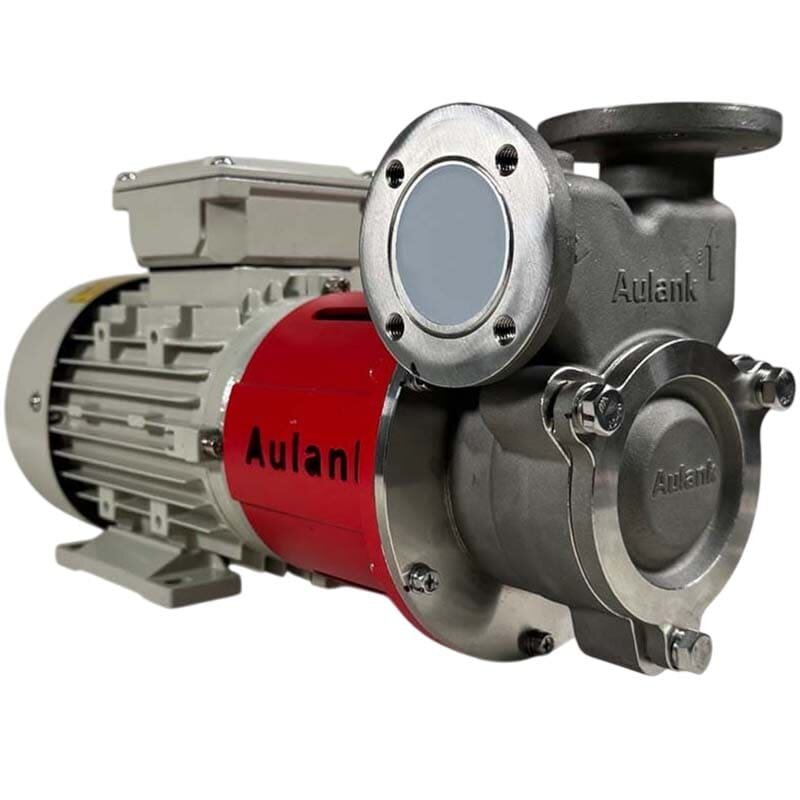

Stainless steel magnetic coupling pump MDH-100U -196°C+400°C

Code: 1039215
(0 review)
Temperature (min), °C-196
ProducerALUNAK
Pump capacity, cu.m/hour19.8
Feed height, m70
Power capacity, kW7,5
MaterialAISI 304 stainless steel
Input pipe diameterDN65
Output pipe diameterDN50
Rate of turn, rpm1 470
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h19.8
Max.temperature, C400
Max. head, m70
Flow rate, l/min330
Impeller materialbrass
Nom.head, m40
Pressure, bar30
Serial number of the pumpMDH
Country of OriginChina
PumpTypewith magnetic coupling
Drive Typeelectric
Installation Typehorizontal
Weight, kg193
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
MDH series magnetic vortex pump with high and low temperature, the material of the flow parts is stainless steel, and has a certain function of mixing gas and liquid. Safety and stability at high temperatures. Applications: high temperature mold temperature control, high and low temperature testing equipment, precision semiconductor temperature control, chemical equipment, template temperature control, ultrasonic cleaning equipment, high-quality printing and dyeing, TCU temperature control system, etc. Circulating medium: water, ethylene glycol, alcohol, heat transfer oil, hydrocarbon solution, silicone oil, ice refrigerant, gasoline, fuel without particles and fibers. Liquids, such as chemical solutions.
Temperature (min), °C-196
ProducerALUNAK
Pump capacity, cu.m/hour19.8
Feed height, m70
Power capacity, kW7,5
MaterialAISI 304 stainless steel
Input pipe diameterDN65
Output pipe diameterDN50
Rate of turn, rpm1 470
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h19.8
Max.temperature, C400
Max. head, m70
Flow rate, l/min330
Impeller materialbrass
Nom.head, m40
Pressure, bar30
Serial number of the pumpMDH
Country of OriginChina
PumpTypewith magnetic coupling
Drive Typeelectric
Installation Typehorizontal
Weight, kg193

Download instructions, catalog for Stainless steel magnetic coupling pump MDH-100U -196°C+400°C
