DP 30 SC/T-V - Pneumatic Membrane Pump

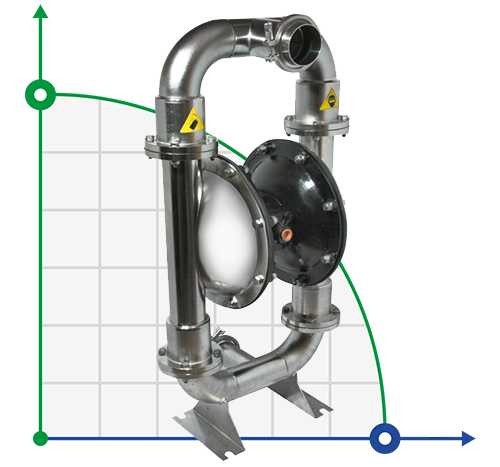

Click image for a larger view

Code: 1020111

(0 review)

Producer	DiaPump
Pump capacity, cu.m/hour	53.64
Feed height, m	80
Material	AISI 316L
Noise level ,dB	65
Explosion protection	Yes
ATEX standard	Ex II 2 G c Tx; Ex II 2 D c Tx; Ex I M2 c T (150°C)
Max.flow rate, m3/h	53.64
Max.temperature, C	95
Material of flow channel	AISI 316L
Max. head, m	80
Diaphragm material at water side	PTFE / FKM
Max.viscosity, cPs	55 000
Max.air pressure, bar	8,4
Flow rate, l/min	894
Max.diameter of solid inclusions, mm	8
Model	DP 30
Diametr of the product line	3"
Diameter of the pneumatic mainline	3/4"
Dry suction height, m	6
Suction capacity (NPSH), m	9,8
Serial number of the pump	DP
Country of Origin	Turkey
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Warranty, months	12
Application	saturated amine, formalin, phenol, acetic acid, alcohol, reverse osmosis systems, sulfur, peroxide, oleum, varnish, phosphoric acid, paints, carbonate, urea, kaolin suspension, ash, clays, viscous liquids, hydrogen, phosphates, slag, slip, ethers, ethylene, alkalis, butane, ammonia, nitric acid
Analogue for	AGRAL DDE-600, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-60, YAMADA NDP, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DELLMECO DMCX, DEPA DB, DEPA L, DEPA М, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC, DEPA РМ (Р)
Weight, kg	65

Show all features (30)

Documentation

Description DP 30 SC/T-V - Pneumatic Membrane Pump

Membrane pumps DP with innovative air separation system, geometry of pump chambers and valve system, allows to pump over a wide range of aggressive products (concentrated acids, alkalis, solvents, laquers, glues, liquids with suspended particles to 10 mm, abrasive products, etc.) with viscosity from 6000 to 55000 cPs. Wet part of membrane pumps DP is made of such material as: - РР: POLYPROPLENE ; - PB: FIBER POLYPROPLENE; - PVDF: KYNAR; - AL: ALUMINUM; - DD: CAST IRON; - SC: АІSI 316L; - SS: АІSI 316. The main working bodies (membranes, ball valves, ball seats) are made of: - S: SANTOPRENE; - N: NEOPRENE; - B: BUNA-N (NBR); - E: EPDM; - T: PTFE; - V: VITON / FKM. The advantages of pneumatic membrane pumps DP: - Dry self-suction to 6 m; - Self-suction with flooded suction to 9,8 m; - Unrestrained dry running.

Features DP 30 SC/T-V - Pneumatic Membrane Pump

Producer	DiaPump
Pump capacity, cu.m/hour	53.64
Feed height, m	80
Material	AISI 316L
Noise level ,dB	65
Explosion protection	Yes
ATEX standard	Ex II 2 G c Tx; Ex II 2 D c Tx; Ex I M2 c T (150°C)
Max.flow rate, m3/h	53.64
Max.temperature, C	95
Material of flow channel	AISI 316L
Max. head, m	80
Diaphragm material at water side	PTFE / FKM
Max.viscosity, cPs	55 000
Max.air pressure, bar	8,4
Flow rate, l/min	894
Max.diameter of solid inclusions, mm	8
Model	DP 30
Diametr of the product line	3"
Diameter of the pneumatic mainline	3/4"
Dry suction height, m	6
Suction capacity (NPSH), m	9,8
Serial number of the pump	DP
Country of Origin	Turkey
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Warranty, months	12
Application	saturated amine, formalin, phenol, acetic acid, alcohol, reverse osmosis systems, sulfur, peroxide, oleum, varnish, phosphoric acid, paints, carbonate, urea, kaolin suspension, ash, clays, viscous liquids, hydrogen, phosphates, slag, slip, ethers, ethylene, alkalis, butane, ammonia, nitric acid
Analogue for	AGRAL DDE-600, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-60, YAMADA NDP, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DELLMECO DMCX, DEPA DB, DEPA L, DEPA М, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC, DEPA РМ (Р)
Weight, kg	65
