Food diaphragm pump 503 FOODBOXER

Product list

Home
Industrial pumps
Diaphragm Air pump
Food diaphragm pump 503 FOODBOXER

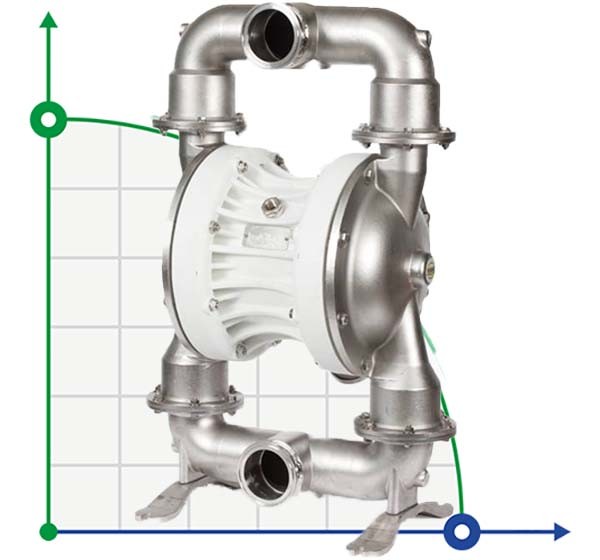

Click image for a larger view

Code: FB503-A-HTAAT--

(0 review)

Producer	DEBEM
Pump capacity, cu.m/hour	54
Feed height, m	70
Material	AISI 316L
Input pipe diameter	3"
Output pipe diameter	3"
Max.flow rate, m3/h	54
Max.temperature, C	95
Material of flow channel	AISI 316L
Max. head, m	70
Diaphragm material at air side	HYTREL
Diaphragm material at water side	PTFE
Material of ball valves	PTFE
Material of valve seat	INOX
Max.viscosity, cPs	50 000
Max.air pressure, bar	7
Flow rate, l/min	900
Max.diameter of solid inclusions, mm	10
Model	FOODBOXER 503
Material of O-ring	PTFE
Max.dry suction head, m	5
Pneumatic circuit connection, inch, f	3/4"
Serial number of the pump	FOODBOXER
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Application	paints, acetic acid, alcohol, reverse osmosis systems, sulfur, peroxide, oleum, saturated amine, varnish, carbonate, formalin, urea, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, phenol, phosphates, phosphoric acid, ethers, ethylene, alkalis, slip, slag, nitric acid
Analogue for	AGRAL DDE-600, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-60, YAMADA NDP, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DELLMECO DMCX, DEPA DB, DEPA L, DEPA М, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC, DEPA РМ (Р)
Weight, kg	71

Show all features (30)

Description Food diaphragm pump 503 FOODBOXER

Food hygiene pumps FOODBOXER for the food, cosmetic industries. Main features of the pump 502 FOODBOXER - High pump output to 650 l / min; - Samozakachivanie liquid up to 4 m; - Gravity mode; - Rapid regulation while maintaining a high pressure; - The possibility of establishing a suspension; - Adjustable blowing and head; - Mnogopatrubnye tube bends; - Can run dry without any problems; - No electrical connections; - Easily replaceable parts; - Easy-care; - STANDARD: II 3/3 GD c IIB T135 ° C (zone 2) - CONDUCT: II 2/2 GD c IIB T135 ° C (zone 1)

Features Food diaphragm pump 503 FOODBOXER

Producer	DEBEM
Pump capacity, cu.m/hour	54
Feed height, m	70
Material	AISI 316L
Input pipe diameter	3"
Output pipe diameter	3"
Max.flow rate, m3/h	54
Max.temperature, C	95
Material of flow channel	AISI 316L
Max. head, m	70
Diaphragm material at air side	HYTREL
Diaphragm material at water side	PTFE
Material of ball valves	PTFE
Material of valve seat	INOX
Max.viscosity, cPs	50 000
Max.air pressure, bar	7
Flow rate, l/min	900
Max.diameter of solid inclusions, mm	10
Model	FOODBOXER 503
Material of O-ring	PTFE
Max.dry suction head, m	5
Pneumatic circuit connection, inch, f	3/4"
Serial number of the pump	FOODBOXER
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Application	paints, acetic acid, alcohol, reverse osmosis systems, sulfur, peroxide, oleum, saturated amine, varnish, carbonate, formalin, urea, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, phenol, phosphates, phosphoric acid, ethers, ethylene, alkalis, slip, slag, nitric acid
Analogue for	AGRAL DDE-600, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-60, YAMADA NDP, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DELLMECO DMCX, DEPA DB, DEPA L, DEPA М, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC, DEPA РМ (Р)
Weight, kg	71
