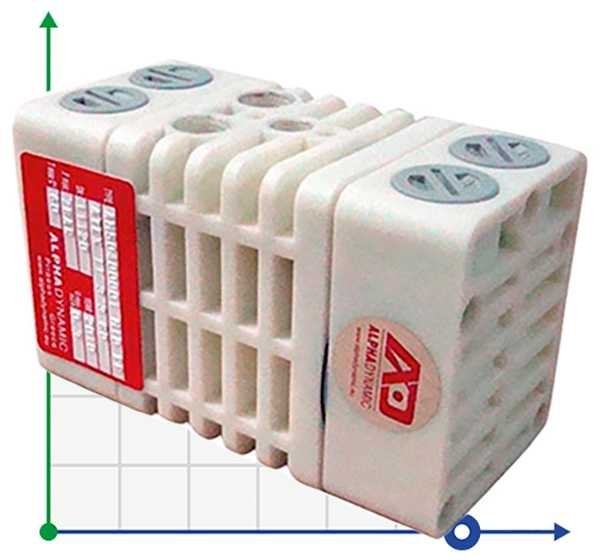

MINI005-P-NT-P-Y pneumatic diaphragm pump

Code: A005-0003-T
(0 review)
ProducerAlphaDynamic
Pump capacity, cu.m/hour0.3
Feed height, m70
MaterialPP
Input pipe diameter1/4"
Output pipe diameter1/4"
Explosion protectionYes
Max.flow rate, m3/h0.3
Max.temperature, C60
Max. head, m70
Diaphragm material at water sidePTFE+back up (NBR)
Material of ball valvesPYREX
Material of valve seatPP
Max.air pressure, bar7
Flow rate, l/min5
Max.diameter of solid inclusions, mm0,5
ModelMINI005
Diameter of the pneumatic mainline1/8"
Dry suction height, m3
Dimensions, mm121x60x75
Housing materialPP
Serial number of the pumpRUBY
Country of OriginGreece
PumpTypemembrane pneumatic
Drive Typepneumatic
Availability of spare partsyes
Warranty, months12
Applicationsaturated amine, formalin, phenol, acetic acid, alcohol, reverse osmosis systems, sulfur, peroxide, oleum, varnish, phosphoric acid, paints, carbonate, urea, kaolin suspension, ash, clays, viscous liquids, hydrogen, phosphates, slag, slip, ethers, ethylene, alkalis, butane, ammonia, nitric acid
Analogue forAquaViva, DEPA L, DEPA DB, DELLMECO DMCX, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AQUA, AlphaDynamic Ruby, AGRAL DDE-600, AGRAL DDE-60, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DEPA М, DEPA РМ (Р), DOSITEC, Duotek AF Zone 2 Atex, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD
Weight, kg0,5
Show all features (30)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$331.39 (netto)
Добавить в сравнение
We deliver anywhere in the world
Benefits of Ruby Pumps: - economical air consumption, eco-design; - a high degree of performance; - optimum performance; - High efficiency of the pressure / capacity; - does not freeze; - New design of the air valve is fully controlled by the passage of air; - ease of disassembly and reassembly; - progressive membrane technology; - new generation of diaphragm with an inner outer piston; - composite membrane PTFE + EPDM. It combines the highest resistance to aggressive media Teflon and EPDM elasticity. Operating temperature from -10 ° C to + 130 ° C; - combined with a modified PTFE membrane layer, calculated on 100 million cycles are ideal for abrasive fluids and for operation under conditions of negative temperatures;. - Option Twin Manifold (two suction and two delivery); - excellent performance and value for money; - ideal for abrasive, viscous and shear sensitive media; - Automatic suction; - a full immersion in the pumped medium (on request); - pumping viscous liquids; - ease of maintenance and replacement parts; - slight change ORIENTAL supply port (reverse collector).
ProducerAlphaDynamic
Pump capacity, cu.m/hour0.3
Feed height, m70
MaterialPP
Input pipe diameter1/4"
Output pipe diameter1/4"
Explosion protectionYes
Max.flow rate, m3/h0.3
Max.temperature, C60
Max. head, m70
Diaphragm material at water sidePTFE+back up (NBR)
Material of ball valvesPYREX
Material of valve seatPP
Max.air pressure, bar7
Flow rate, l/min5
Max.diameter of solid inclusions, mm0,5
ModelMINI005
Diameter of the pneumatic mainline1/8"
Dry suction height, m3
Dimensions, mm121x60x75
Housing materialPP
Serial number of the pumpRUBY
Country of OriginGreece
PumpTypemembrane pneumatic
Drive Typepneumatic
Availability of spare partsyes
Warranty, months12
Applicationsaturated amine, formalin, phenol, acetic acid, alcohol, reverse osmosis systems, sulfur, peroxide, oleum, varnish, phosphoric acid, paints, carbonate, urea, kaolin suspension, ash, clays, viscous liquids, hydrogen, phosphates, slag, slip, ethers, ethylene, alkalis, butane, ammonia, nitric acid
Analogue forAquaViva, DEPA L, DEPA DB, DELLMECO DMCX, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AQUA, AlphaDynamic Ruby, AGRAL DDE-600, AGRAL DDE-60, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DEPA М, DEPA РМ (Р), DOSITEC, Duotek AF Zone 2 Atex, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD
Weight, kg0,5
