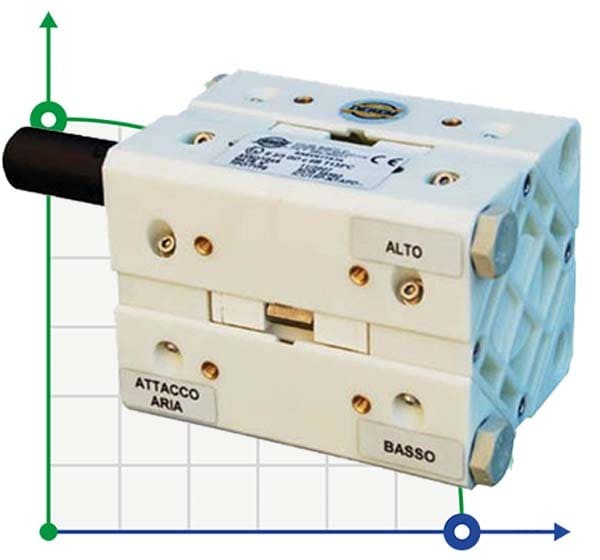

Pump CUBIC 15 PP ICU15P-NTTPVX-

Click image for a larger view

Code: ICU15P-NTTPVX-

(0 review)

Producer	DEBEM
Pump capacity, cu.m/hour	1.02
Feed height, m	70
Material	PP
Input pipe diameter	3/8"
Output pipe diameter	3/8"
Max.flow rate, m3/h	1.02
Max.temperature, C	65
Material of flow channel	PP
Max. head, m	70
Diaphragm material at air side	NBR
Diaphragm material at water side	PTFE
Material of ball valves	PTFE
Material of valve seat	PP
Max.viscosity, cPs	15 000
Max.air pressure, bar	7
Flow rate, l/min	17
Max.diameter of solid inclusions, mm	0,5
Model	CUBIC 15
Material of O-ring	VITON
Max.dry suction head, m	4
Pneumatic circuit connection, inch, f	3/8"
Serial number of the pump	CUBIC
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Application	urea, reverse osmosis systems, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, acetic acid, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid, alcohol, phenol, formalin, ethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates
Analogue for	AlphaDynamic Ruby, DELLMECO DMCX, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AGRAL DDE-600, AGRAL DDE-60, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DEPA DB, DEPA L, DEPA М, DEPA РМ (Р), YAMADA NDP, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC
Weight, kg	1

Show all features (30)

Description Pump CUBIC 15 PP ICU15P-NTTPVX-

Mini diaphragm pump with two membranes CUBIC 15 The main pump 15 possibilities CUBIC • performance up to 17 l / min; samozakachivanie fluid to 3 m .; work in unconfined mode; • pumping liquids containing solid, and the insoluble particles of up to 0.5 mm; • pumping very viscous liquids; • smooth adjustment of productivity 0-100% by adjusting the air flow; • Support the work in the "dry run"; • execution barrel pump functions; • Flameproof structure without the electric pump; • standard version - certification ATEX II 3 / 3G D IIB T 135 ° C (zone 2); • possibility of operation in hazardous environments - Certification ATEX II 2 / 2GD c IIB T 135 ° C (zone 1); • a full immersion in the pumped medium (on request); • kompaknye size, ease of maintenance.

Features Pump CUBIC 15 PP ICU15P-NTTPVX-

Producer	DEBEM
Pump capacity, cu.m/hour	1.02
Feed height, m	70
Material	PP
Input pipe diameter	3/8"
Output pipe diameter	3/8"
Max.flow rate, m3/h	1.02
Max.temperature, C	65
Material of flow channel	PP
Max. head, m	70
Diaphragm material at air side	NBR
Diaphragm material at water side	PTFE
Material of ball valves	PTFE
Material of valve seat	PP
Max.viscosity, cPs	15 000
Max.air pressure, bar	7
Flow rate, l/min	17
Max.diameter of solid inclusions, mm	0,5
Model	CUBIC 15
Material of O-ring	VITON
Max.dry suction head, m	4
Pneumatic circuit connection, inch, f	3/8"
Serial number of the pump	CUBIC
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Application	urea, reverse osmosis systems, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, acetic acid, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid, alcohol, phenol, formalin, ethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates
Analogue for	AlphaDynamic Ruby, DELLMECO DMCX, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AGRAL DDE-600, AGRAL DDE-60, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DEPA DB, DEPA L, DEPA М, DEPA РМ (Р), YAMADA NDP, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC
Weight, kg	1
