The pneumatic diaphragm pumps BOXER 251 Alu IB251-AL-HTTLT--

The pneumatic diaphragm pumps BOXER 251 Alu IB251-AL-HTTLT--

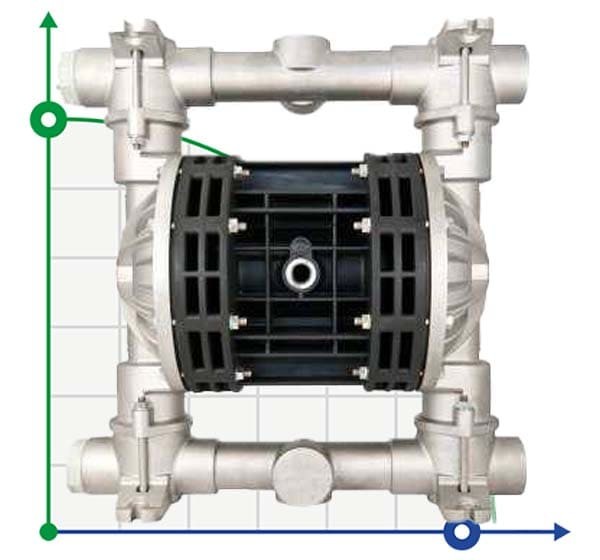

Click image for a larger view

Code: IB251-AL-HTTLT--

(0 review)

Producer	DEBEM
Pump capacity, cu.m/hour	20.4
Feed height, m	70
Material	AL
Input pipe diameter	1" 1/2
Output pipe diameter	1" 1/2
Max.flow rate, m3/h	20.4
Max.temperature, C	95
Material of flow channel	AL
Max. head, m	70
Diaphragm material at air side	HYTREL
Diaphragm material at water side	PTFE
Material of ball valves	PTFE
Material of valve seat	ALU
Max.viscosity, cPs	50 000
Max.air pressure, bar	7
Flow rate, l/min	340
Max.diameter of solid inclusions, mm	6
Model	BOXER 251
Material of O-ring	PTFE
Max.dry suction head, m	6
Pneumatic circuit connection, inch, f	1/2"
Serial number of the pump	BOXER
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Application	urea, reverse osmosis systems, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, acetic acid, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid, alcohol, phenol, formalin, ethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates
Analogue for	AGRAL DDE-600, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-60, YAMADA NDP, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DELLMECO DMCX, DEPA DB, DEPA L, DEPA М, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC, DEPA РМ (Р)
Weight, kg	21

Show all features (30)

Documentation

Description The pneumatic diaphragm pumps BOXER 251 Alu IB251-AL-HTTLT--

Pneumatic diaphragm pump BOXER 251 Alu The possibility of the transfer pump BOXER 251 - pump capacity up to 340 l / min; - liquid Samozakachivanie to 6 m; - Work in unconfined mode; - Rapid regulation while maintaining a high pressure; - The possibility of establishing a suspension; - Adjustable blowing and head; - Mnogopatrubnye tube bends; - Can run dry without any problems; - No electrical connections; - Easily replaceable parts; - Easy maintenance; - Version Conduct, ATEX 2 / 2GD c IIB T 135 ° C can be supplied.

Features The pneumatic diaphragm pumps BOXER 251 Alu IB251-AL-HTTLT--

Producer	DEBEM
Pump capacity, cu.m/hour	20.4
Feed height, m	70
Material	AL
Input pipe diameter	1" 1/2
Output pipe diameter	1" 1/2
Max.flow rate, m3/h	20.4
Max.temperature, C	95
Material of flow channel	AL
Max. head, m	70
Diaphragm material at air side	HYTREL
Diaphragm material at water side	PTFE
Material of ball valves	PTFE
Material of valve seat	ALU
Max.viscosity, cPs	50 000
Max.air pressure, bar	7
Flow rate, l/min	340
Max.diameter of solid inclusions, mm	6
Model	BOXER 251
Material of O-ring	PTFE
Max.dry suction head, m	6
Pneumatic circuit connection, inch, f	1/2"
Serial number of the pump	BOXER
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Application	urea, reverse osmosis systems, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, acetic acid, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid, alcohol, phenol, formalin, ethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates
Analogue for	AGRAL DDE-600, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-60, YAMADA NDP, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DELLMECO DMCX, DEPA DB, DEPA L, DEPA М, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC, DEPA РМ (Р)
Weight, kg	21
