Seko Duotek AF250 AISI316 pneumatic diaphragm pump

Product list

Home
Industrial pumps
Diaphragm Air pump
Seko Duotek AF250 AISI316 pneumatic diaphragm pump

Seko Duotek AF250 AISI316 pneumatic diaphragm pump

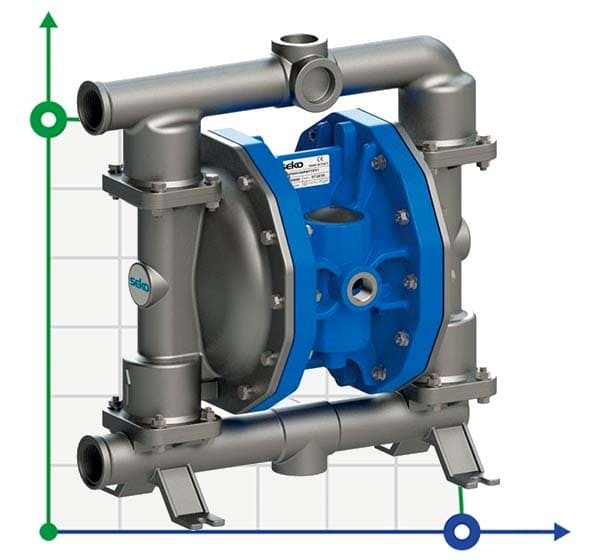

Click image for a larger view

Code: 1039486

Producer	SEKO
Pump capacity, m3/h	15
Feed height, m	80
Material	AISI 316 stainless steel
Input pipe diameter	1" 1/4
Output pipe diameter	1" 1/4
Noise level ,dB	75
Explosion protection	Yes
ATEX standard	EX II 3/3 GD c IIB T 135°C
Max.flow rate, m3/h	15
Max.temperature, C	95
Max. head, m	80
Max.viscosity, cPs	35 000
Max.air pressure, bar	8
Flow rate, l/min	250
Max.diameter of solid inclusions, mm	7,5
Diametr of the product line	1" 1/4
Diameter of the pneumatic mainline	1/2"
Dry suction height, m	6
Suction capacity (NPSH), m	9,8
Serial number of the pump	Duotek
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Warranty, months	12
Application	kaolin suspension, peroxide, oleum, saturated amine, varnish, paints, carbonate, urea, ash, reverse osmosis systems, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid, sulfur, alcohol, ethers, acetic acid, ethylene, alkalis, slip, slag, phosphoric acid, phosphates, formalin, phenol
Analogue for	YAMADA NDP, AGRAL DDE-160, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-600, AGRAL DDE-60, AGRAL DDE-300, AGRAL DDE-100, Debem FOODBOXER, AGRAL DDE-030, Debem BOXER, Debem SANIBOXER, WILDEN, Grundfos, Sera, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Graco Husky, DELLMECO DM, FWT, Emec, DOSITEC, DEPA РМ (Р), DEPA М, DEPA L, DEPA DB, DELLMECO DMCX
Weight, kg	20

Show all features (28)

Description Seko Duotek AF250 AISI316 pneumatic diaphragm pump

The SEKO Duotek Series double diaphragm air pumps provide versatility and reliability for all applications. Pneumatic diaphragm pumps have long been recognized as the most flexible pumps in the industry for pumping complex liquids at relatively low pressures and costs. The possibilities of their application are almost limitless. SEKO pumps come in a variety of sizes and are made from a variety of materials. The pumps allow you to pump liquids of almost any type, from highly corrosive acids to high-viscosity paints and adhesives, food and beverages.

Features Seko Duotek AF250 AISI316 pneumatic diaphragm pump

Producer	SEKO
Pump capacity, m3/h	15
Feed height, m	80
Material	AISI 316 stainless steel
Input pipe diameter	1" 1/4
Output pipe diameter	1" 1/4
Noise level ,dB	75
Explosion protection	Yes
ATEX standard	EX II 3/3 GD c IIB T 135°C
Max.flow rate, m3/h	15
Max.temperature, C	95
Max. head, m	80
Max.viscosity, cPs	35 000
Max.air pressure, bar	8
Flow rate, l/min	250
Max.diameter of solid inclusions, mm	7,5
Diametr of the product line	1" 1/4
Diameter of the pneumatic mainline	1/2"
Dry suction height, m	6
Suction capacity (NPSH), m	9,8
Serial number of the pump	Duotek
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Warranty, months	12
Application	kaolin suspension, peroxide, oleum, saturated amine, varnish, paints, carbonate, urea, ash, reverse osmosis systems, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid, sulfur, alcohol, ethers, acetic acid, ethylene, alkalis, slip, slag, phosphoric acid, phosphates, formalin, phenol
Analogue for	YAMADA NDP, AGRAL DDE-160, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-600, AGRAL DDE-60, AGRAL DDE-300, AGRAL DDE-100, Debem FOODBOXER, AGRAL DDE-030, Debem BOXER, Debem SANIBOXER, WILDEN, Grundfos, Sera, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Graco Husky, DELLMECO DM, FWT, Emec, DOSITEC, DEPA РМ (Р), DEPA М, DEPA L, DEPA DB, DELLMECO DMCX
Weight, kg	20
