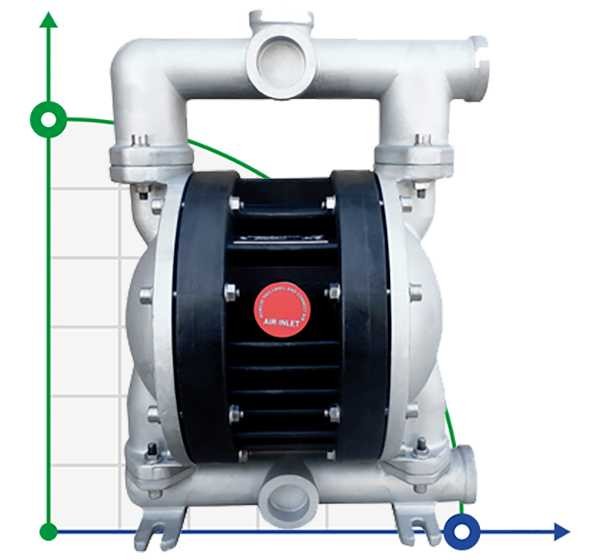

RUBY 125A-P-NNN pneumatic diaphragm pump

Click image for a larger view

Code: A125-0052

(0 review)

Producer	AlphaDynamic
Pump capacity, cu.m/hour	10.5
Feed height, m	80
Material	AL
Input pipe diameter	1"
Output pipe diameter	1"
Explosion protection	Yes
Max.flow rate, m3/h	10.5
Max.temperature, C	95
Max. head, m	80
Diaphragm material at water side	NBR
Material of ball valves	NBR
Material of valve seat	NBR
Max.air pressure, bar	8
Flow rate, l/min	175
Max.diameter of solid inclusions, mm	3,5
Model	RUBY 125
Diameter of the pneumatic mainline	1/2"
Dry suction height, m	5
Dimensions, mm	267x257x362
Housing material	AL
Material of O-ring	NBR
Serial number of the pump	RUBY
Country of Origin	Greece
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Warranty, months	12
Application	paints, acetic acid, alcohol, reverse osmosis systems, sulfur, peroxide, oleum, saturated amine, varnish, carbonate, formalin, urea, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, phenol, phosphates, phosphoric acid, ethers, ethylene, alkalis, slip, slag, nitric acid
Analogue for	AGRAL DDE-600, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-60, DEPA DB, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DELLMECO DMCX, DEPA L, Jesco Pump, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Injecta, DEPA М, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC, DEPA РМ (Р)
Weight, kg	8

Show all features (31)

Documentation

Description RUBY 125A-P-NNN pneumatic diaphragm pump

Benefits of Ruby Pumps: - economical air consumption, eco-design; - a high degree of performance; - optimum performance; - High efficiency of the pressure / capacity; - does not freeze; - New design of the air valve is fully controlled by the passage of air; - ease of disassembly and reassembly; - progressive membrane technology; - new generation of diaphragm with an inner outer piston; - composite membrane PTFE + EPDM. It combines the highest resistance to aggressive media Teflon and EPDM elasticity. Operating temperature from -10 ° C to + 130 ° C; - combined with a modified PTFE membrane layer, calculated on 100 million cycles are ideal for abrasive fluids and for operation under conditions of negative temperatures;. - Option Twin Manifold (two suction and two delivery); - excellent performance and value for money; - ideal for abrasive, viscous and shear sensitive media; - Automatic suction; - a full immersion in the pumped medium (on request); - pumping viscous liquids; - ease of maintenance and replacement parts; - slight change ORIENTAL supply port (reverse collector).

Features RUBY 125A-P-NNN pneumatic diaphragm pump

Producer	AlphaDynamic
Pump capacity, cu.m/hour	10.5
Feed height, m	80
Material	AL
Input pipe diameter	1"
Output pipe diameter	1"
Explosion protection	Yes
Max.flow rate, m3/h	10.5
Max.temperature, C	95
Max. head, m	80
Diaphragm material at water side	NBR
Material of ball valves	NBR
Material of valve seat	NBR
Max.air pressure, bar	8
Flow rate, l/min	175
Max.diameter of solid inclusions, mm	3,5
Model	RUBY 125
Diameter of the pneumatic mainline	1/2"
Dry suction height, m	5
Dimensions, mm	267x257x362
Housing material	AL
Material of O-ring	NBR
Serial number of the pump	RUBY
Country of Origin	Greece
PumpType	membrane pneumatic
Drive Type	pneumatic
Availability of spare parts	yes
Warranty, months	12
Application	paints, acetic acid, alcohol, reverse osmosis systems, sulfur, peroxide, oleum, saturated amine, varnish, carbonate, formalin, urea, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, phenol, phosphates, phosphoric acid, ethers, ethylene, alkalis, slip, slag, nitric acid
Analogue for	AGRAL DDE-600, DELLMECO DM, Debem SANIBOXER, Debem FOODBOXER, Debem BOXER, Astralpool, AquaViva, AQUA, AlphaDynamic Ruby, AGRAL DDE-60, DEPA DB, AGRAL DDE-300, AGRAL DDE-160, AGRAL DDE-100, AGRAL DDE-030, DELLMECO DMCX, DEPA L, Jesco Pump, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, PRODOSE, Milwaukee, MILTON ROY, Injecta, DEPA М, Grundfos, Graco Husky, FWT, Emec, DUOTEK SANI, DUOTEK FOOD, Duotek AF Zone 2 Atex, DOSITEC, DEPA РМ (Р)
Weight, kg	8
