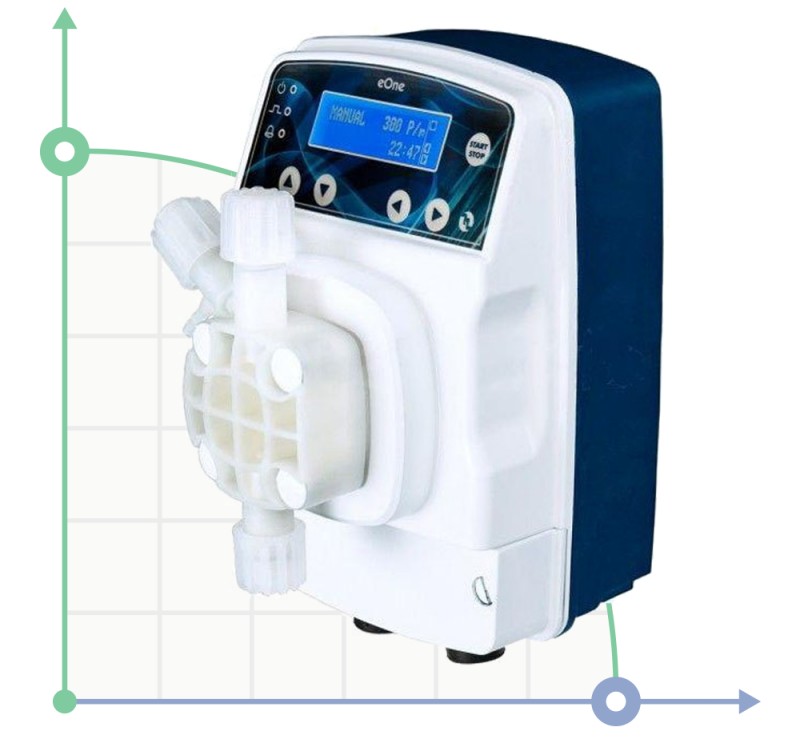

Dosing pump PDE eONE PLUS 07-10 100/250V
Click image for a larger view
Dosing pump PDE eONE PLUS 07-10 100/250V
Dosing pump PDE eONE PLUS 07-10 100/250V
Dosing pump PDE eONE PLUS 07-10 100/250V
Dosing pump PDE eONE PLUS 07-10 100/250V

Dosing pump PDE eONE PLUS 07-10 100/250V

Code: PEU463944I
(0 review)
ProducerETATRON D.S.
MaterialPVDF
Power supply1х220 V, 50 Hz
ModelPLUS
Flow rate, l/h7
Power capacity, Wt7/26
Pressure, bar10
Pump body materialPVDF
ControlMicroprocessing
Dosage mode: Continually ON-OFFSo
Dosage mode: proportional PROPSo
Product regulation 0-100%So
Input for level sensor reagentSo
Input 4-20 mASo
Pulse input(From Flowmetwer)So
Input foe sensor PHSo
Input for sensor RXSo
Input foe sensorSo
Input for sensor CDNo
Input foe temperature sensorSo
Input mASo
Output service relaySo
Support for flow sensorSo
Number of pulses300
Impulse volume0,39
Serial number of the pumpeONE
Country of OriginItaly
PumpTypedosing solenoid
Drive Typeelectric
Availability of spare partsyes
Applicationhypochlorite, caustic, algaecide, coagulant, acid, alkalis, of hydrochloric acid
Analogue forAquaViva, Emec, FWT, Injecta, Seko, ASeko, Descon trol S
Weight, kg4,5
Show all features (33)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$848.72 (netto)
Добавить в сравнение
We deliver anywhere in the world
Digital multi-function proportional dosing pump with integrated pH/RedOx/Cl/ppm controller. Backlit liquid crystal display. The maximum pulse frequency is 300 imp/min. A procedure for calibrating a specific pulse for specific needs. Dosage regimens: - Manual ON/OFF - Proportional PROP. Plus all the main modes and functions of the eONE-MF pump (see the description above). Measuring range: 0-14 pH; -1000+1400 mV (RedOx); 0-2, 0-20, 0-200 mg/l (chlorine), 0-2, 0-20, 0-200 ppm (parts per millionth). Setting the pump start-up delay time. Manual (25 ° C by default) or automatic temperature compensation (when connecting the PT100 temperature sensor). MAX alarm system. reagent concentrations. Alarm system MIN. reagent concentrations. Continuous dosing time alarm. The output is 4-20 mA. ON/OFF relay output for alarm system. Support for output flow and level sensors (sensors are not included). Power consumption-26 W (varies depending on
Categories: Metering pumpPool metering pumpWater treatment pumpSodium Hypochlorite dosing pumpPump for dosing oxidantsReagent dosingChlorine dosing pumpAcid PumpCoagulant pumpFlocculant pumpPump for chemistrySolenoid pumps
ProducerETATRON D.S.
MaterialPVDF
Power supply1х220 V, 50 Hz
ModelPLUS
Flow rate, l/h7
Power capacity, Wt7/26
Pressure, bar10
Pump body materialPVDF
ControlMicroprocessing
Dosage mode: Continually ON-OFFSo
Dosage mode: proportional PROPSo
Product regulation 0-100%So
Input for level sensor reagentSo
Input 4-20 mASo
Pulse input(From Flowmetwer)So
Input foe sensor PHSo
Input for sensor RXSo
Input foe sensorSo
Input for sensor CDNo
Input foe temperature sensorSo
Input mASo
Output service relaySo
Support for flow sensorSo
Number of pulses300
Impulse volume0,39
Serial number of the pumpeONE
Country of OriginItaly
PumpTypedosing solenoid
Drive Typeelectric
Availability of spare partsyes
Applicationhypochlorite, caustic, algaecide, coagulant, acid, alkalis, of hydrochloric acid
Analogue forAquaViva, Emec, FWT, Injecta, Seko, ASeko, Descon trol S
Weight, kg4,5
