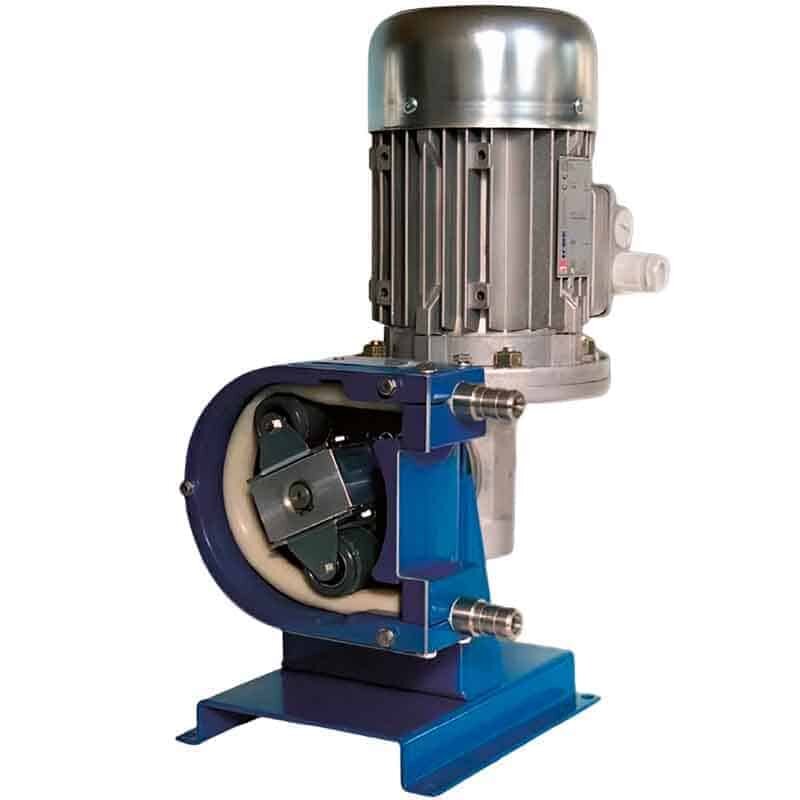

Peristaltic pump for feeding filter presses ACME Pompe AS 10 FX 93 l/h, 0.18 kW, 93 rpm, with fixed capacity

Code: 1057149
(0 review)
Flow Rate, L/rev0,017
Inner diameter of the pump hose, mm9
ProducerACME Pompe
Pump capacity, m3/h0.093
Feed height, m15
Power capacity, kW0,18
Rate of turn, rpm93
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h0.093
Max. head, m15
Suction capacity (NPSH), m4
Flow rate, l/h93
Hose standard size9x16
Product regulation 0-100%No
Serial number of the pumpAS
Country of OriginItaly
PumpTypeperistaltic
Drive Typeelectric
Type of configurationwith engine
Availability of spare partsYes
Warranty, months12
Applicationalkalis, chemistry, misalignment, coagulant, acid, liquid powders, antisepsis
Weight, kg7
Show all features (25)
Warehouse Ukraine: Pre-order only
Warehouse Poland: Pre-order only
Warehouse Germany: Pre-order only
Warehouse Italy: Pre-order only
$988 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
ACME Pompe peristaltic pumps, AS series are very well suited for abrasive products, corrosive products, shear-sensitive products, viscous products, high-density products, dosing, vacuum conditions. Applications: water treatment plants, chemical and petrochemical industries, paper mills, textile industry, ceramic production, construction, mining industry, paints and varnishes, emulsion oils, food and dairy industries, food paste production, wineries and bottling plants, pharmaceutical and cosmetic industries, leather factories. Multi-layer hoses with textile reinforcement, available in several versions that can be selected according to the pumped liquid and the operating conditions. The pump ensures precise and controlled delivery, works with aggressive substances without the risk of corrosion. The absence of direct contact with mechanical parts prevents contamination and simplifies maintenance. Peristaltic technology eliminates the need for valves, seals and complex components, reducing the risk of failure and simplifying the entire maintenance process.
Category: Metering pump
Flow Rate, L/rev0,017
Inner diameter of the pump hose, mm9
ProducerACME Pompe
Pump capacity, m3/h0.093
Feed height, m15
Power capacity, kW0,18
Rate of turn, rpm93
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h0.093
Max. head, m15
Suction capacity (NPSH), m4
Flow rate, l/h93
Hose standard size9x16
Product regulation 0-100%No
Serial number of the pumpAS
Country of OriginItaly
PumpTypeperistaltic
Drive Typeelectric
Type of configurationwith engine
Availability of spare partsYes
Warranty, months12
Applicationalkalis, chemistry, misalignment, coagulant, acid, liquid powders, antisepsis
Weight, kg7

Download instructions, catalog for Peristaltic pump for feeding filter presses ACME Pompe AS 10 FX 93 l/h, 0.18 kW, 93 rpm, with fixed capacity

Loading...
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
1042834
Producer
BTS Engineering
Power capacity, kW
0,75-4
In stock
0
$95
PN16 DN125 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
1042543
Connection diameter, DN
125
Material of the disk
AISI 304 stainless steel
In stock
0
$113
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
1042833
Producer
BTS Engineering
Power capacity, kW
0,37-3
In stock
0
$64
PN16 DN40 Stainless steel ball valve AISI 316, seat PTFE
1040598
Connection diameter, DN
40
Producer
BTS Engineering
In stock
0
$141
DN50 Thermodynamic flanged condensate trap PN16/1.0619
1040125
Connection diameter, DN
50
Producer
BTS Engineering
In stock
0
$371
PN16 DN150 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
1042544
Connection diameter, DN
150
Material of the disk
AISI 304 stainless steel
In stock
0
$135
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
1040256
Connection diameter, DN
25
Control signal, mA
4-20
Preorder
0
$1,654
Control panel for pump, 4 kW
16607
Producer
BTS Engineering
Power capacity, kW
4
In stock
0
$328
PN16 DN125 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042552
Connection diameter, DN
125
Material of the disk
AISI 304 stainless steel
In stock
0
$46
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
1042835
Producer
BTS Engineering
Power capacity, kW
1,1-7,5
In stock
0
$101
PN16 DN150 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042553
Connection diameter, DN
150
Material of the disk
AISI 304 stainless steel
In stock
0
$59
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
1042836
Producer
BTS Engineering
Power capacity, kW
1,1-11
In stock
0
$109
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
1042837
Producer
BTS Engineering
Power capacity, kW
2,2-15
In stock
0
$127
Control panel for pump, 1.5 kW
16606
Producer
BTS Engineering
Power capacity, kW
1,5
In stock
0
$174
Control panel for pump, 3 kW
16604
Producer
BTS Engineering
Power capacity, kW
3
In stock
0
$319
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
1042838
Producer
BTS Engineering
Power capacity, kW
3-18,5
In stock
0
$154
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
1042839
Producer
BTS Engineering
Power capacity, kW
4-22
In stock
0
$182
Control panel for pump, 5.5 kW
16610
Producer
BTS Engineering
Power capacity, kW
5,5
In stock
0
$339
Control panel for pump, 2.2 kW
16605
Producer
BTS Engineering
Power capacity, kW
2,2
In stock
0
$232
Control panel for pump, 7.5 kW
16608
Producer
BTS Engineering
Power capacity, kW
7,5
In stock
0
$345
PN16 DN32 Stainless steel ball valve AISI 316, seat PTFE
1040109
Connection diameter, DN
32
Producer
BTS Engineering
In stock
0
$117
Control panel for pump, 22 kW
16613
Producer
BTS Engineering
Power capacity, kW
22
In stock
0
$1,323
Control panel for pump, 11 kW
16609
Producer
BTS Engineering
Power capacity, kW
11
In stock
0
$356
Control panel for pump, 18.5 kW
16612
Producer
BTS Engineering
Power capacity, kW
18,5
In stock
0
$575
Control panel for pump, 15 kW
16611
Producer
BTS Engineering
Power capacity, kW
15
Preorder
0
$477
Products from the same category
Peristaltic pump for pumping jam ACME Pompe AS 10 FX 23 l/h, 0.18 kW, 23 rpm, with fixed capacity
1057145
Flow Rate, L/rev
0,017
Inner diameter of the pump hose, mm
9
Preorder
0
$988
Peristaltic pump for tomato paste ACME Pompe AS 10 FX 35 l/h, 0.18 kW, 35 rpm, with fixed capacity
1057146
Flow Rate, L/rev
0,017
Inner diameter of the pump hose, mm
9
Preorder
0
$988
Peristaltic pump for fruit juices with pulp ACME Pompe AS 10 FX 47 l/h, 0.18 kW, 47 rpm, with fixed capacity
1057147
Flow Rate, L/rev
0,017
Inner diameter of the pump hose, mm
9
Preorder
0
$988
Peristaltic pump for sludge pumping ACME Pompe AS 10 FX 70 l/h, 0.18 kW, 70 rpm, with fixed capacity
1057148
Flow Rate, L/rev
0,017
Inner diameter of the pump hose, mm
9
Preorder
0
$988
Peristaltic pump for high viscosity adhesives ACME Pompe AS 15 FX 56 l/h, 0.18 kW, 23 rpm, with fixed capacity
1057150
Flow Rate, L/rev
0,041
Inner diameter of the pump hose, mm
13
Preorder
0
$1,194
Peristaltic pump for high viscosity liquids ACME Pompe AS 15 FX 86 l/h, 0.18 kW, 35 rpm, with fixed capacity
1057151
Flow Rate, L/rev
0,041
Inner diameter of the pump hose, mm
13
Preorder
0
$1,194
Peristaltic pump for pumping adhesives ACME Pompe AS 15 FX 115 l/h, 0.18 kW, 47 rpm, with fixed capacity
1057152
Flow Rate, L/rev
0,041
Inner diameter of the pump hose, mm
13
Preorder
0
$1,194
Peristaltic pump for pumping vinyl adhesives ACME Pompe AS 15 FX 172 l/h, 0.18 kW, 70 rpm, with fixed capacity
1057153
Flow Rate, L/rev
0,041
Inner diameter of the pump hose, mm
13
Preorder
0
$1,194

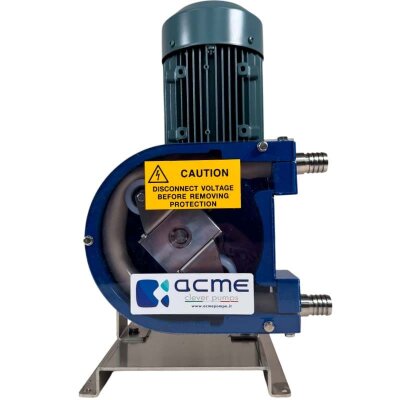

Peristaltic pump for pumping varnishes ACME Pompe AS 15 FX 228 l/h, 230/400V 50Hz, 0.18 kW, 93 rpm - TPV, with fixed capacity
