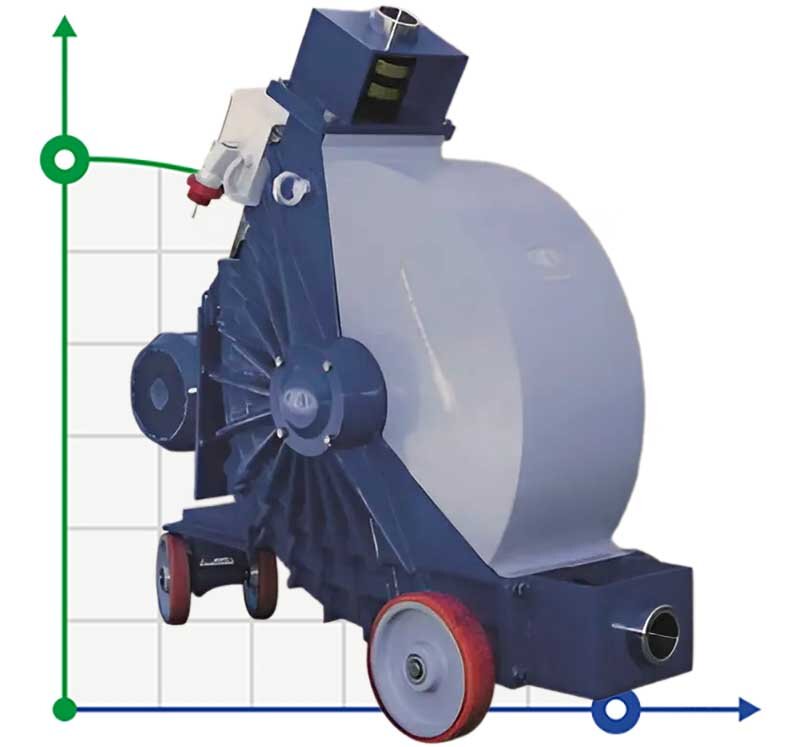

Chemical peristaltic pump FLUIMAC HELIOS ATR 280 IX 63414 l/h, 15 kW, 58 rpm, with performance adjustment and frequency converter

Code: 1049828
(0 review)
Flow Rate, L/rev18,2
Inner diameter of the pump hose, mm80
ProducerFLUIMAC
Pump capacity, cu.m/hour63414
Feed height, m40
Power capacity, kW15
Rate of turn, rpm58
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h63414
Max. head, m40
Suction capacity (NPSH), m8
Flow rate, l/h63414
Product regulation 0-100%So
Serial number of the pumpHELIOS ATR
Country of OriginItaly
PumpTypeperistaltic
Drive Typeelectric
Type of configurationwith engine
Availability of spare partsyes
Warranty, months12
Applicationalkalis, chemistry, misalignment, coagulant, acid, liquid powders, antisepsis
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$62,993.93 (netto)
Добавить в сравнение
We deliver anywhere in the world
Peristaltic pumps of the HELIOS ATR series of the Italian company FLUIMAC are used for precise dosing of abrasive products, acids, viscous and dense liquids. Peristaltic pumps have a long service life and increased reliability. They work in self-suction mode. Continuous operation in dry mode. Quick and easy maintenance. The main working elements of a hose pump are a hose made of flexible material and rollers that run over it and compress it. When rotating the shaft on which the rollers are fixed, the compressed section of the hose moves and moves portions of liquid from the suction part to the discharge part. The shaft and rollers do not come into contact with the liquid, which allows aggressive solutions to be pumped, hose materials must be selected in accordance with the pumped product.
Category: Metering pump
Flow Rate, L/rev18,2
Inner diameter of the pump hose, mm80
ProducerFLUIMAC
Pump capacity, cu.m/hour63414
Feed height, m40
Power capacity, kW15
Rate of turn, rpm58
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h63414
Max. head, m40
Suction capacity (NPSH), m8
Flow rate, l/h63414
Product regulation 0-100%So
Serial number of the pumpHELIOS ATR
Country of OriginItaly
PumpTypeperistaltic
Drive Typeelectric
Type of configurationwith engine
Availability of spare partsyes
Warranty, months12
Applicationalkalis, chemistry, misalignment, coagulant, acid, liquid powders, antisepsis

Download instructions, catalog for Chemical peristaltic pump FLUIMAC HELIOS ATR 280 IX 63414 l/h, 15 kW, 58 rpm, with performance adjustment and frequency converter
