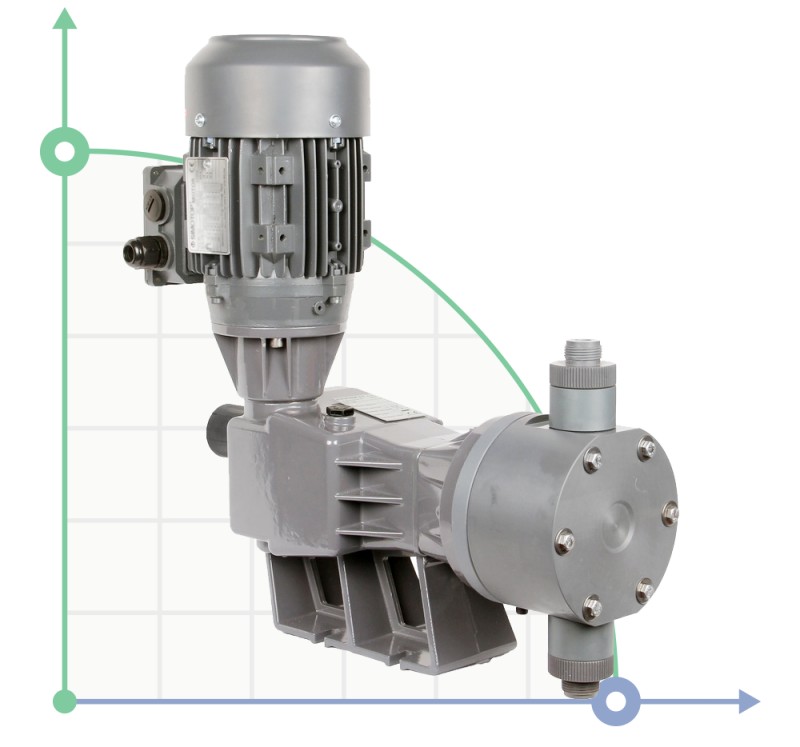

Plunger dosing pump PDM-P BA 158/9 400/3/50 0,25

P series plunger chemical metering pumps; Capacity: 14÷1027 L/H, pressure: 3.5÷25 bar; Configuration BA — pump's head— PVC, plunger — ceramics; The pumps comply with CE standards; The pump body is made of cast aluminum, protected by epoxy, anti-acid paint; Protection class: IP55, insulation Class: F; The pump capacity is regulated by a micrometer handle that controls the length of the piston stroke; Maximum intake height: 3 meters; The plunger pump is controlled by a vertically positioned motor; The gearbox operates on the principle of idling (the piston is returned using a return spring); Standard motor: 0.25 kW-0.75 kW, 230 / 400V, 3 phase, 50 Hz.; Other types of engines on request.
