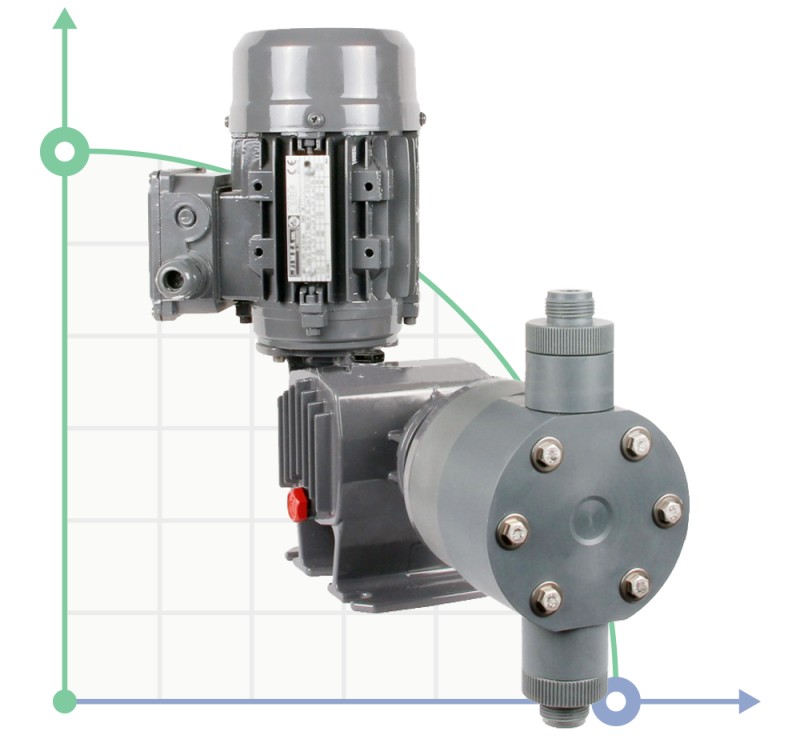

Plunger dosing pump PDM-P BA 58/4,5 400/3/50 0,18

ST-P series plunger dosing pumps in compact MINI design; Capacity: 6÷190 L/H, pressure: 3.5÷20 bar; Configuration: BA — pump head-PVC, plunger-ceramic; The pumps comply with CE standards; The pump body is made of cast aluminum, protected by epoxy, anti-acid paint; Protection class: IP55, insulation Class: F S1-IEC 34-1; The pump capacity is regulated by a micrometer handle that controls the length of the piston stroke; Maximum intake height: 3 meters; The dosing pump is controlled by a vertically positioned motor; The gearbox operates on the principle of idling (the piston is returned using a return spring); Standard motor: 0.18 kW, 230 / 400V, 3 phase, 50 Hz; Other types of engines on request.
