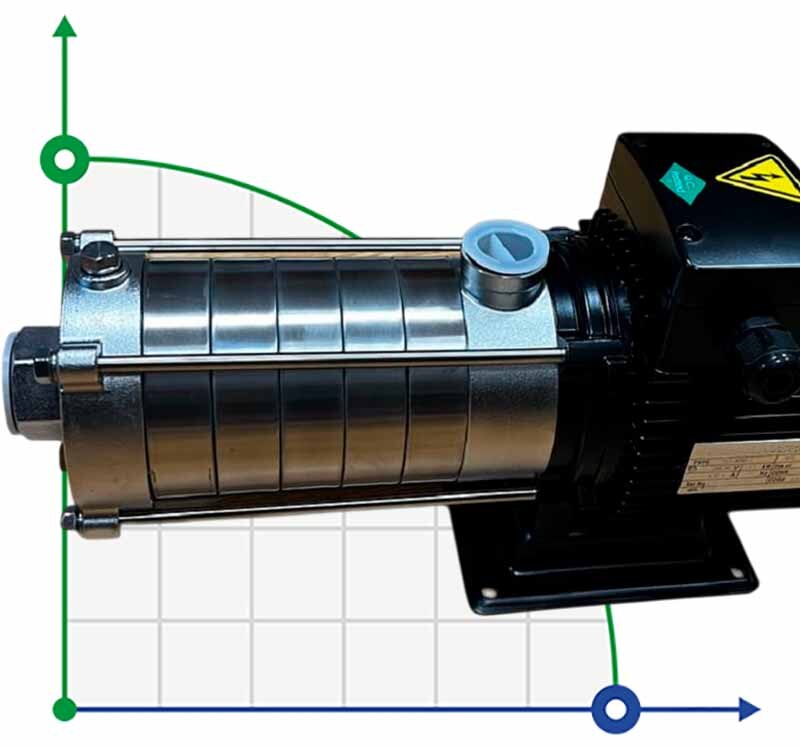

Horizontal high-pressure pump for hot water DW(S)5-60/110D, AISI304, 220V/50Hz
Click image for a larger view
Horizontal high-pressure pump for hot water DW(S)5-60/110D, AISI304, 220V/50Hz
Horizontal high-pressure pump for hot water DW(S)5-60/110D, AISI304, 220V/50Hz
Horizontal high-pressure pump for hot water DW(S)5-60/110D, AISI304, 220V/50Hz
Horizontal high-pressure pump for hot water DW(S)5-60/110D, AISI304, 220V/50Hz
Horizontal high-pressure pump for hot water DW(S)5-60/110D, AISI304, 220V/50Hz

Horizontal high-pressure pump for hot water DW(S)5-60/110D, AISI304, 220V/50Hz

Code: 1050554
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour6.5
Feed height, m58
Power capacity, kW1,1
MaterialAISI 304 stainless steel
Input pipe diameterG1 1/4
Output pipe diameterG1
Rate of turn, rpm2 900
Power supply1х220 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h6.5
Max.temperature, C80
Material of flow channelAISI 304 stainless steel
Max. head, m58
Dimensions, mm430x162x200
Serial number of the pumpDW(S)
Country of OriginChina
PumpTypemulti-stage
Drive Typeelectric
Installation Typehorizontal
Warranty, months12
Weight, kg16,5
Show all features (22)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$487.73 (netto)
Добавить в сравнение
We deliver anywhere in the world
Multi-stage horizontal stainless steel centrifugal pump for hot water DW(S). Applications: water supply systems, boiler feeding, water treatment systems, pharmaceutical and food industry, chemical processing industry, washing and sprinkling. Suitable for transporting clean and non-corrosive liquids that are not aggressive to AISI304 stainless steel. The casing, impeller, back cover, pump shaft and diffusers are made of AISI304 stainless steel. Liquid temperature: -15C ~ + 80C. Axial suction, radial discharge. This pump can be used at full head without overloading the motor.
Category: Multi-stage pump
ProducerBTS Engineering
Pump capacity, cu.m/hour6.5
Feed height, m58
Power capacity, kW1,1
MaterialAISI 304 stainless steel
Input pipe diameterG1 1/4
Output pipe diameterG1
Rate of turn, rpm2 900
Power supply1х220 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h6.5
Max.temperature, C80
Material of flow channelAISI 304 stainless steel
Max. head, m58
Dimensions, mm430x162x200
Serial number of the pumpDW(S)
Country of OriginChina
PumpTypemulti-stage
Drive Typeelectric
Installation Typehorizontal
Warranty, months12
Weight, kg16,5

Download instructions, catalog for Horizontal high-pressure pump for hot water DW(S)5-60/110D, AISI304, 220V/50Hz
