| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 4 |
| Feed height, m | 187 |
| Power capacity, kW | 3 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | DN25 |
| Output pipe diameter | DN25 |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | Yes |
| Max.flow rate, m3/h | 4 |
| Max.temperature, C | 120 |
| Material of flow channel | AISI 304 stainless steel |
| Max. head, m | 187 |
| Seal | Mechanical Seal |
| Impeller material | AISI 304 stainless steel |
| Nom.flow rate, m3/h | 3 |
| Nom.head, m | 142 |
| Housing material | AISI 304 stainless steel |
| Serial number of the pump | BVS |
| Country of Origin | China |
| PumpType | multi-stage |
| Drive Type | electric |
| Installation Type | vertical |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | water treatment, Water Treatment, fountain, steam boiler, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation |
| Analogue for | Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Ebara EVMS, Speroni RVM, EBARA EVMW, EBARA EVM, Varna |
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 4 |
| Feed height, m | 187 |
| Power capacity, kW | 3 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | DN25 |
| Output pipe diameter | DN25 |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | Yes |
| Max.flow rate, m3/h | 4 |
| Max.temperature, C | 120 |
| Material of flow channel | AISI 304 stainless steel |
| Max. head, m | 187 |
| Seal | Mechanical Seal |
| Impeller material | AISI 304 stainless steel |
| Nom.flow rate, m3/h | 3 |
| Nom.head, m | 142 |
| Housing material | AISI 304 stainless steel |
| Serial number of the pump | BVS |
| Country of Origin | China |
| PumpType | multi-stage |
| Drive Type | electric |
| Installation Type | vertical |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | water treatment, Water Treatment, fountain, steam boiler, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation |
| Analogue for | Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Ebara EVMS, Speroni RVM, EBARA EVMW, EBARA EVM, Varna |

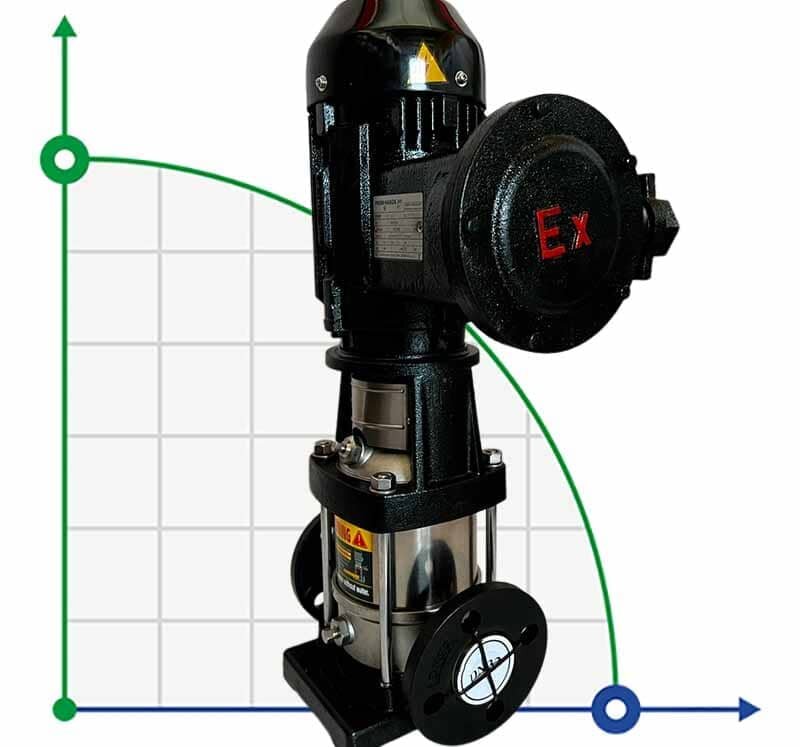

Download instructions, catalog for Pump for alcohol stainless BVS 3-31, 3 kW, AISI 304, Ex
