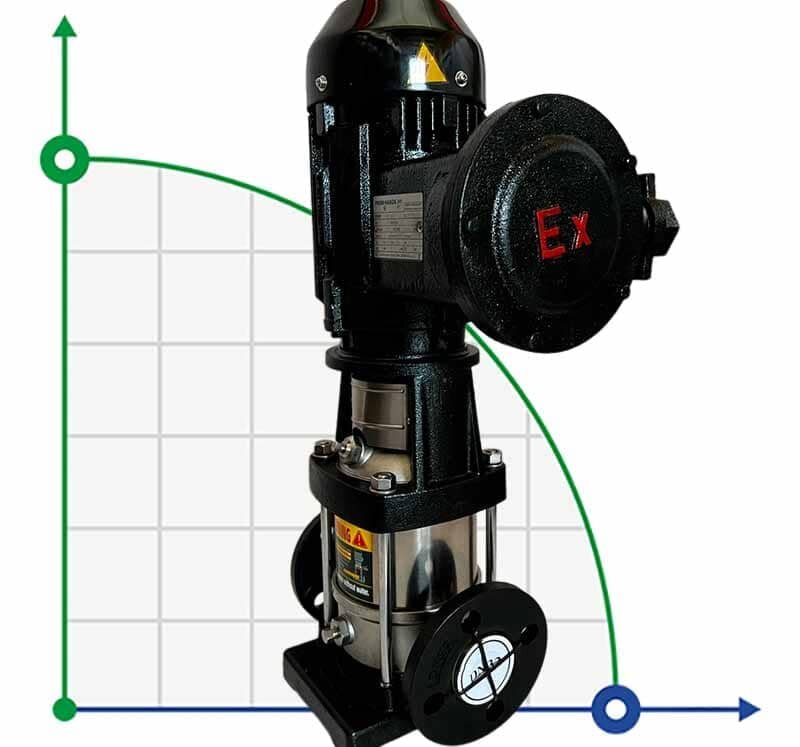

Explosion-proof pump for chemical liquids BVS 45-100, 37 kW, AISI 304, Ex

Code: 1046677
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour55
Feed height, m238
Power capacity, kW37
MaterialAISI 304 stainless steel
Input pipe diameterDN80
Output pipe diameterDN80
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h55
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Max. head, m238
SealMechanical Seal
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h45
Nom.head, m193
Housing materialAISI 304 stainless steel
Serial number of the pumpBVS
Country of OriginChina
PumpTypemulti-stage
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwater treatment, Water Treatment, fountain, steam boiler, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation
Analogue forSperoni RVM, Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, EBARA EVMW, Ebara EVMS, EBARA EVM, Varna
Show all features (29)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$10,155.26 (netto)
Добавить в сравнение
We deliver anywhere in the world
Багатоступінчасті насоси BVS з нержавіючої сталі AISI 304 підходять для систем промислової обробки, систем мийки та очищення, перекачування кислот і лугів, фільтрації, підвищення тиску, очищення води, кондиціонування, зрошення, систем протипожежного захисту.
ProducerBTS Engineering
Pump capacity, cu.m/hour55
Feed height, m238
Power capacity, kW37
MaterialAISI 304 stainless steel
Input pipe diameterDN80
Output pipe diameterDN80
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h55
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Max. head, m238
SealMechanical Seal
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h45
Nom.head, m193
Housing materialAISI 304 stainless steel
Serial number of the pumpBVS
Country of OriginChina
PumpTypemulti-stage
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwater treatment, Water Treatment, fountain, steam boiler, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation
Analogue forSperoni RVM, Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, EBARA EVMW, Ebara EVMS, EBARA EVM, Varna
