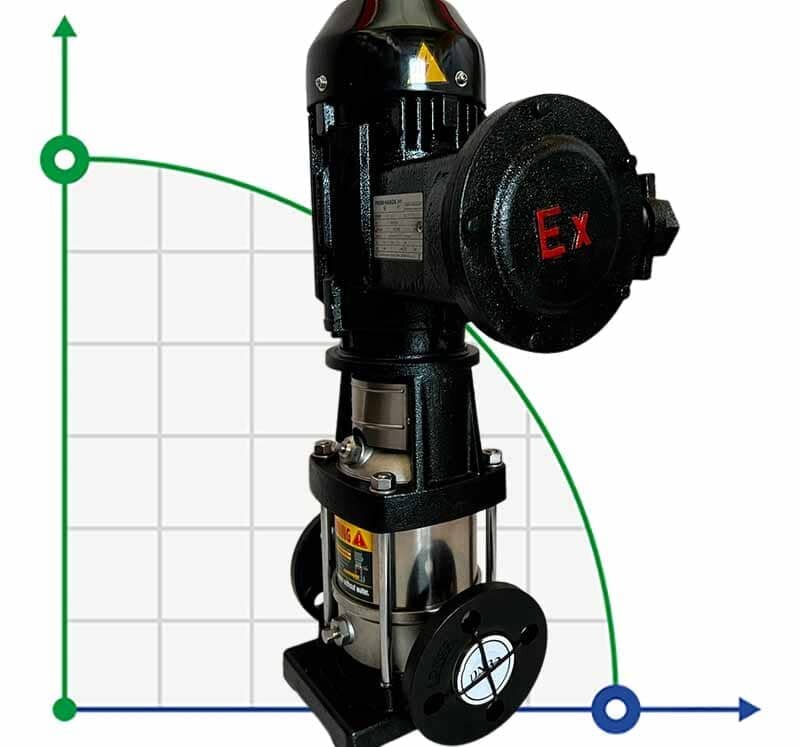

Antiseptic pump explosion-proof BVS 90-40, 30 kW, AISI 304, Ex
Click image for a larger view
Antiseptic pump explosion-proof BVS 90-40, 30 kW, AISI 304, Ex
Antiseptic pump explosion-proof BVS 90-40, 30 kW, AISI 304, Ex
Antiseptic pump explosion-proof BVS 90-40, 30 kW, AISI 304, Ex
Antiseptic pump explosion-proof BVS 90-40, 30 kW, AISI 304, Ex
Antiseptic pump explosion-proof BVS 90-40, 30 kW, AISI 304, Ex
More +1

Antiseptic pump explosion-proof BVS 90-40, 30 kW, AISI 304, Ex

Code: 1046712
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour110
Feed height, m110
Power capacity, kW30
MaterialAISI 304 stainless steel
Input pipe diameterDN100
Output pipe diameterDN100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h110
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Max. head, m110
SealMechanical Seal
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h90
Nom.head, m84
Housing materialAISI 304 stainless steel
Serial number of the pumpBVS
Country of OriginChina
PumpTypemulti-stage
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwater treatment, Water Treatment, fountain, steam boiler, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation
Analogue forSperoni RVM, Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, EBARA EVMW, Ebara EVMS, EBARA EVM, Varna
Show all features (29)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$7,506.33 (netto)
Добавить в сравнение
We deliver anywhere in the world
Багатоступінчасті насоси BVS з нержавіючої сталі AISI 304 підходять для систем промислової обробки, систем мийки та очищення, перекачування кислот і лугів, фільтрації, підвищення тиску, очищення води, кондиціонування, зрошення, систем протипожежного захисту.
Category: Multi-stage pump
ProducerBTS Engineering
Pump capacity, cu.m/hour110
Feed height, m110
Power capacity, kW30
MaterialAISI 304 stainless steel
Input pipe diameterDN100
Output pipe diameterDN100
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h110
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Max. head, m110
SealMechanical Seal
Impeller materialAISI 304 stainless steel
Nom.flow rate, m3/h90
Nom.head, m84
Housing materialAISI 304 stainless steel
Serial number of the pumpBVS
Country of OriginChina
PumpTypemulti-stage
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationwater treatment, Water Treatment, fountain, steam boiler, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation
Analogue forSperoni RVM, Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, EBARA EVMW, Ebara EVMS, EBARA EVM, Varna
