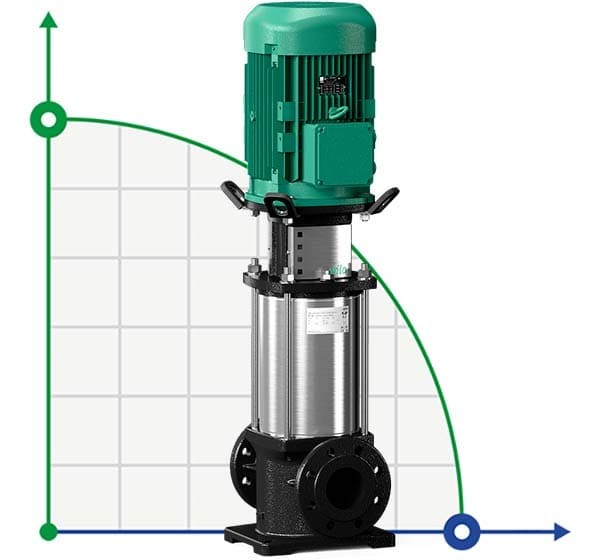

WILO HELIX FIRST V5201/1-5/16/E/S/400-50 multi-staged pump

Click image for a larger view

Code: 4183422

Producer	Wilo
Pump capacity, cu.m/hour	70
Feed height, m	18
Input pipe diameter	DN 80
Output pipe diameter	DN 80
Power supply	3х380 V, 50 Hz
Max.flow rate, m3/h	70
Nom.pressure, Mpa	1,6
Max.temperature, C	120
Material of flow channel	AISI 304 stainless steel
Max. head, m	18
Serial number of the pump	Helix
Country of Origin	Germany
PumpType	multi-stage
Drive Type	electric
Installation Type	vertical
Type of configuration	with engine
Application	hydroponics, greenhouses, aeroponics, wash, jets, washing, osmosis, membranes, water treatment, steam boiler, fountain, Water Treatment, irrigation, caustic, alkalis, boiler, increasing pressure, water, water, hot water

Show all features (18)

Description WILO HELIX FIRST V5201/1-5/16/E/S/400-50 multi-staged pump

Multistage centrifugal pump WILO HELIX of vertical design and line connection. This pump is distinguished by highly compacted design. The pump shaft and the IEC motor shaft are connected to each other by a longitudinal-roll coupling. The separate rolling bearing of the connecting element guarantees optimum absorption of axial forces. Applications: water supply and pressure boosting, industrial circulation plants, process water, closed cooling circuits, fire extinguishing systems, washing plants

Features WILO HELIX FIRST V5201/1-5/16/E/S/400-50 multi-staged pump

Producer	Wilo
Pump capacity, cu.m/hour	70
Feed height, m	18
Input pipe diameter	DN 80
Output pipe diameter	DN 80
Power supply	3х380 V, 50 Hz
Max.flow rate, m3/h	70
Nom.pressure, Mpa	1,6
Max.temperature, C	120
Material of flow channel	AISI 304 stainless steel
Max. head, m	18
Serial number of the pump	Helix
Country of Origin	Germany
PumpType	multi-stage
Drive Type	electric
Installation Type	vertical
Type of configuration	with engine
Application	hydroponics, greenhouses, aeroponics, wash, jets, washing, osmosis, membranes, water treatment, steam boiler, fountain, Water Treatment, irrigation, caustic, alkalis, boiler, increasing pressure, water, water, hot water
