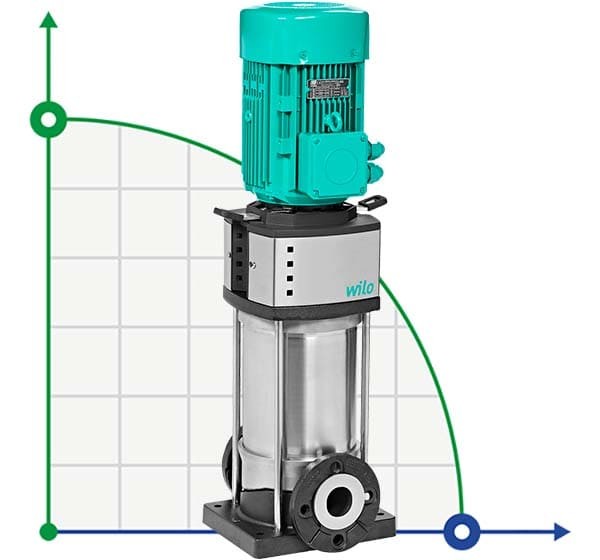

WILO HELIX V3606-4/16/E/KS/400-50 multi-staged pump
Click image for a larger view

WILO HELIX V3606-4/16/E/KS/400-50 multi-staged pump

Code: 4183411
(0 review)
ProducerWilo
Pump capacity, m3/h55
Feed height, m155
Input pipe diameterDN65
Output pipe diameterDN65
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h55
Nom.pressure, Mpa1,6
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Max. head, m155
Serial number of the pumpHelix
Country of OriginGermany
PumpTypemulti-stage
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Applicationirrigation, hydroponics, greenhouses, aeroponics, wash, jets, washing, osmosis, membranes, water treatment, steam boiler, fountain, Water Treatment, caustic, alkalis, boiler, increasing pressure, water, water, hot water
Show all features (18)
Warehouse Ukraine: Pre-order only
Warehouse Poland: Pre-order only
Warehouse Germany: Pre-order only
Warehouse Italy: Pre-order only
$3,419 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
Multistage centrifugal pump WILO HELIX of vertical design and line connection. This pump is distinguished by highly compacted design. The pump shaft and the IEC motor shaft are connected to each other by a longitudinal-roll coupling. The separate rolling bearing of the connecting element guarantees optimum absorption of axial forces. Applications: water supply and pressure boosting, industrial circulation plants, process water, closed cooling circuits, fire extinguishing systems, washing plants
Categories: Multi-stage pumpPump for CIP-washing of the distillation columnPump for water supplyCaustic pumpFeed pump for steam boilersPressure boosting pumpAlkali Pump
ProducerWilo
Pump capacity, m3/h55
Feed height, m155
Input pipe diameterDN65
Output pipe diameterDN65
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h55
Nom.pressure, Mpa1,6
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Max. head, m155
Serial number of the pumpHelix
Country of OriginGermany
PumpTypemulti-stage
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Applicationirrigation, hydroponics, greenhouses, aeroponics, wash, jets, washing, osmosis, membranes, water treatment, steam boiler, fountain, Water Treatment, caustic, alkalis, boiler, increasing pressure, water, water, hot water
