Multistage pump CDLF 150-20-1, AISI 304, Ex

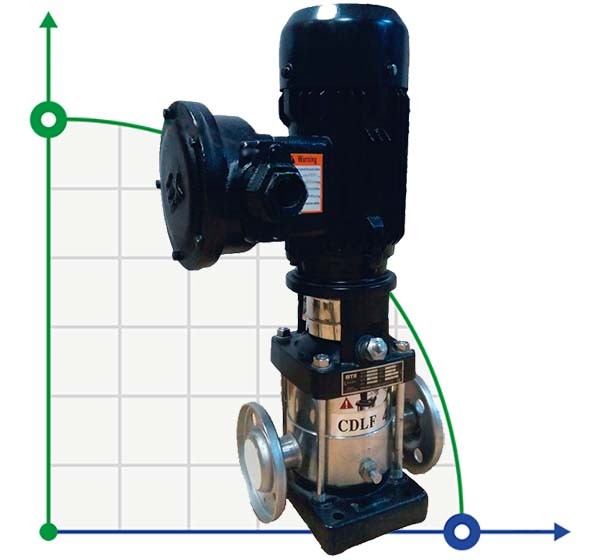

Multistage pump CDLF 150-20-1, AISI 304, Ex

Click image for a larger view

Code: 1028746

(0 review)

Producer	BTS Engineering
Pump capacity, cu.m/hour	180
Feed height, m	44.3
Power capacity, kW	22
Material	AISI 304 stainless steel
Input pipe diameter	DN125
Output pipe diameter	DN125
Rate of turn, rpm	2 900
Protection	IP55
Explosion protection	Yes
Max.flow rate, m3/h	180
Max.temperature, C	120
Material of flow channel	AISI 304 stainless steel
Max. head, m	44.3
Housing material	AISI 304 stainless steel
Serial number of the pump	CDLF
Country of Origin	China
PumpType	multi-stage
Drive Type	electric
Installation Type	vertical
Availability of spare parts	yes
Warranty, months	12
Application	steam boiler, Water Treatment, fountain, water treatment, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation
Analogue for	Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Ebara EVMS, Speroni RVM, EBARA EVMW, EBARA EVM, Varna

Show all features (24)

Documentation

Description Multistage pump CDLF 150-20-1, AISI 304, Ex

Stainless steel CDLF Series multi-stage pumps. Robust, quiet and easy to operate pumps are applied at municipal, industrial and agricultural facilities, namely in systems of fire-extinguishing, water treatment, irrigation, hot and cold water supply, in heating systems, cooling and air conditioning systems. CDLF pumps in ATEX design are widely applied in food industry, alcohol industry in particular (for pumping of alcohol-containing liquids)

Features Multistage pump CDLF 150-20-1, AISI 304, Ex

Producer	BTS Engineering
Pump capacity, cu.m/hour	180
Feed height, m	44.3
Power capacity, kW	22
Material	AISI 304 stainless steel
Input pipe diameter	DN125
Output pipe diameter	DN125
Rate of turn, rpm	2 900
Protection	IP55
Explosion protection	Yes
Max.flow rate, m3/h	180
Max.temperature, C	120
Material of flow channel	AISI 304 stainless steel
Max. head, m	44.3
Housing material	AISI 304 stainless steel
Serial number of the pump	CDLF
Country of Origin	China
PumpType	multi-stage
Drive Type	electric
Installation Type	vertical
Availability of spare parts	yes
Warranty, months	12
Application	steam boiler, Water Treatment, fountain, water treatment, membranes, osmosis, washing, jets, wash, aeroponics, greenhouses, hydroponics, hot water, water, water, increasing pressure, boiler, alkalis, caustic, irrigation
Analogue for	Grundfos CR, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Ebara EVMS, Speroni RVM, EBARA EVMW, EBARA EVM, Varna
