Producer | OFT Pumps |
Pump capacity, cu.m/hour | 5.4 |
Feed height, m | 51 |
Power capacity, kW | 1,1 |
Input pipe diameter | 1" 1/4 |
Output pipe diameter | 1 1/4" |
Rate of turn, rpm | 2 800 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | Yes |
Max.flow rate, m3/h | 5.4 |
Max.temperature, C | 60 |
Max. head, m | 51 |
Seal | VITON |
Impeller material | AISI 304 stainless steel |
Serial number of the pump | FL EX L |
Country of Origin | Italy |
PumpType | multi-stage |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |
Producer | OFT Pumps |
Pump capacity, cu.m/hour | 5.4 |
Feed height, m | 51 |
Power capacity, kW | 1,1 |
Input pipe diameter | 1" 1/4 |
Output pipe diameter | 1 1/4" |
Rate of turn, rpm | 2 800 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | Yes |
Max.flow rate, m3/h | 5.4 |
Max.temperature, C | 60 |
Max. head, m | 51 |
Seal | VITON |
Impeller material | AISI 304 stainless steel |
Serial number of the pump | FL EX L |
Country of Origin | Italy |
PumpType | multi-stage |
Drive Type | electric |
Installation Type | horizontal |
Warranty, months | 12 |

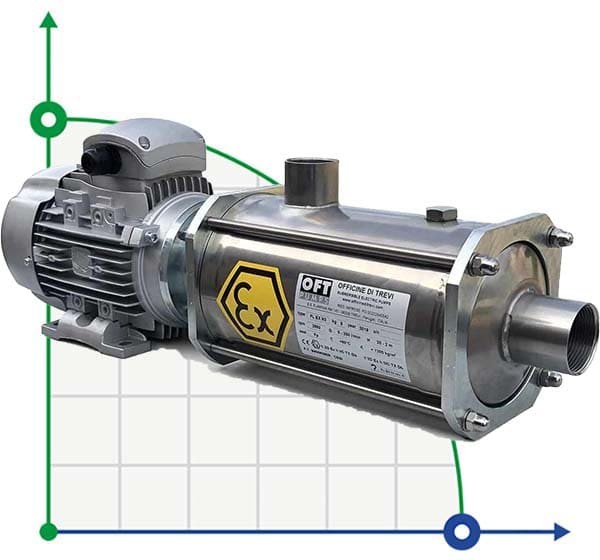

Download instructions, catalog for ATEX FLEX L4, 380V multi-stage surface pump
