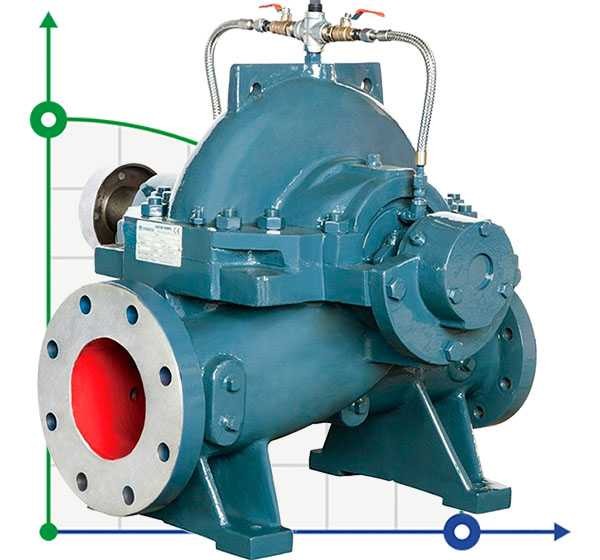

BSC4 150-360A/B, (1500) Double Suction Split Case Pump

Click image for a larger view

Code: 1023035

(0 review)

Producer	BTS Engineering
Pump capacity, cu.m/hour	446
Feed height, m	38
Power capacity, kW	22 … 60,4
Material	cast iron
Input pipe diameter	200
Output pipe diameter	150
Rate of turn, rpm	1 500
Power supply	3х380 V, 50 Hz
Model	BSC4 150-360A/B
Impeller material	cast iron
Nom.flow rate, m3/h	446
Nom.head, m	38
Dimensions, mm	800x881x600
Serial number of the pump	BSC4
Country of Origin	China
PumpType	two-way entrance
Drive Type	electric
Type of configuration	without engine
Warranty, months	12
Weight, kg	360
Length of transport packing, cm	83
Width of transport packing, cm	91
Height of transport packing, cm	78
Height of transport volume, cbm	0,589

Show all features (25)

Documentation

Description BSC4 150-360A/B, (1500) Double Suction Split Case Pump

Double suction split case pump BSC4 DESCRIPTION: - Axially split volute pump casing design - Pump case with anti-corrosive coating HT250 - Double-entry radial impeller in AISI 304 or HT250 - Shaft protecting sleeves in the seal area - Mechanical seal and gland packing are both available - Grease-packed rolling element bearings sealed for life - Reliable complete with motor or diesel for fire fighting etc. USING LIMITS: - Liquid temperature between -10℃ and +120℃ - Ambient temperature between 0℃ and +50℃ - Max. working pressure 25 bar/Continuous S1

Category: Pumps of a double entrance type D

Features BSC4 150-360A/B, (1500) Double Suction Split Case Pump

Producer	BTS Engineering
Pump capacity, cu.m/hour	446
Feed height, m	38
Power capacity, kW	22 … 60,4
Material	cast iron
Input pipe diameter	200
Output pipe diameter	150
Rate of turn, rpm	1 500
Power supply	3х380 V, 50 Hz
Model	BSC4 150-360A/B
Impeller material	cast iron
Nom.flow rate, m3/h	446
Nom.head, m	38
Dimensions, mm	800x881x600
Serial number of the pump	BSC4
Country of Origin	China
PumpType	two-way entrance
Drive Type	electric
Type of configuration	without engine
Warranty, months	12
Weight, kg	360
Length of transport packing, cm	83
Width of transport packing, cm	91
Height of transport packing, cm	78
Height of transport volume, cbm	0,589
