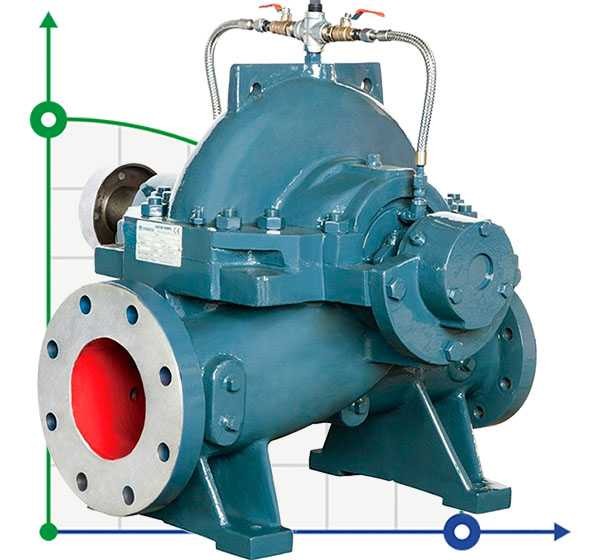

BSC4 200-320A/B, (1500) Double Suction Split Case Pump
Click image for a larger view
BSC4 200-320A/B, (1500) Double Suction Split Case Pump
BSC4 200-320A/B, (1500) Double Suction Split Case Pump
BSC4 200-320A/B, (1500) Double Suction Split Case Pump
BSC4 200-320A/B, (1500) Double Suction Split Case Pump
BSC4 200-320A/B, (1500) Double Suction Split Case Pump

BSC4 200-320A/B, (1500) Double Suction Split Case Pump

Code: 1023038
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour695
Feed height, m30
Power capacity, kW29,5 … 67,2
Materialcast iron
Input pipe diameter250
Output pipe diameter200
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
ModelBSC4 200-320A/B
Impeller materialcast iron
Nom.flow rate, m3/h695
Nom.head, m30
Dimensions, mm900x989x740
Serial number of the pumpBSC4
Country of OriginChina
PumpTypetwo-way entrance
Drive Typeelectric
Type of configurationwithout engine
Warranty, months12
Weight, kg450
Length of transport packing, cm93
Width of transport packing, cm102
Height of transport packing, cm90
Height of transport volume, cbm0,854
Show all features (25)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$7,061.92 (netto)
Добавить в сравнение
We deliver anywhere in the world
Double suction split case pump BSC4 DESCRIPTION: - Axially split volute pump casing design - Pump case with anti-corrosive coating HT250 - Double-entry radial impeller in AISI 304 or HT250 - Shaft protecting sleeves in the seal area - Mechanical seal and gland packing are both available - Grease-packed rolling element bearings sealed for life - Reliable complete with motor or diesel for fire fighting etc. USING LIMITS: - Liquid temperature between -10℃ and +120℃ - Ambient temperature between 0℃ and +50℃ - Max. working pressure 25 bar/Continuous S1
Category: Pumps of a double entrance type D
ProducerBTS Engineering
Pump capacity, cu.m/hour695
Feed height, m30
Power capacity, kW29,5 … 67,2
Materialcast iron
Input pipe diameter250
Output pipe diameter200
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
ModelBSC4 200-320A/B
Impeller materialcast iron
Nom.flow rate, m3/h695
Nom.head, m30
Dimensions, mm900x989x740
Serial number of the pumpBSC4
Country of OriginChina
PumpTypetwo-way entrance
Drive Typeelectric
Type of configurationwithout engine
Warranty, months12
Weight, kg450
Length of transport packing, cm93
Width of transport packing, cm102
Height of transport packing, cm90
Height of transport volume, cbm0,854

Download instructions, catalog for BSC4 200-320A/B, (1500) Double Suction Split Case Pump
