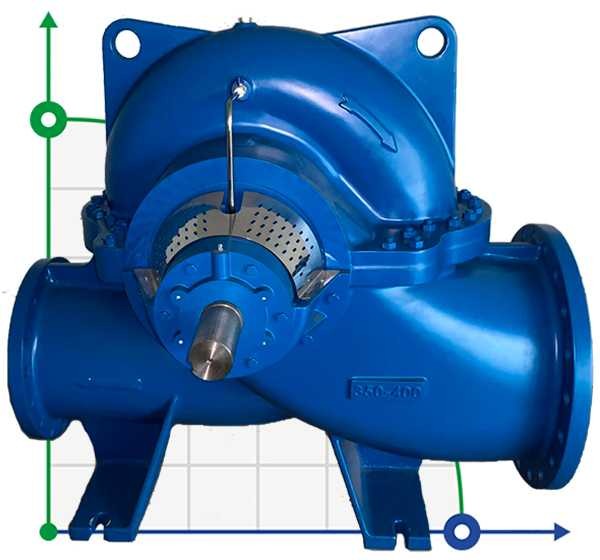

BSCE 300-315(1500) - Double Suction Split Case Pump Without Engine
Click image for a larger view
BSCE 300-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 300-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 300-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 300-315(1500) - Double Suction Split Case Pump Without Engine
BSCE 300-315(1500) - Double Suction Split Case Pump Without Engine

BSCE 300-315(1500) - Double Suction Split Case Pump Without Engine

Code: 1023642
(0 review)
ProducerERDURO
Pump capacity, cu.m/hour1360
Feed height, m35
Power capacity, kW37 … 90
Materialcast iron
Input pipe diameterDN350
Output pipe diameterDN300
Rate of turn, rpm1 500
Max.flow rate, m3/h1360
Max. head, m35
ModelBSCE 300-315
Dimensions, mm1145x1100x1030
Serial number of the pumpBSCE
Country of OriginTurkey
PumpTypetwo-way entrance
Drive Typeelectric
Type of configurationwithout engine
Warranty, months12
Weight, kg700
Show all features (19)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$10,716.30 (netto)
Добавить в сравнение
We deliver anywhere in the world
Split Case Centrifugal Pumps BCSE - Suction and discharge flanges are on the same axis at the bottom casing. - Split case design permits easy disassembly of the rotor group for maintenance or repair without distorting pump alignment and suction and discharge piping. - Impeller is double suction. - This feature increases pump suction performance in addition it provides the balance of hydraulic axial forces. - Flanges are conforming to ISO 7005-2 / PN 16 or PN 25. - All impellers are balanced statically and dynamically according to ISO 1940 class 6.3. - Sealing is provided by gland packing, also it can be mechanical seal according to customer request.
Category: Pumps of a double entrance type D
ProducerERDURO
Pump capacity, cu.m/hour1360
Feed height, m35
Power capacity, kW37 … 90
Materialcast iron
Input pipe diameterDN350
Output pipe diameterDN300
Rate of turn, rpm1 500
Max.flow rate, m3/h1360
Max. head, m35
ModelBSCE 300-315
Dimensions, mm1145x1100x1030
Serial number of the pumpBSCE
Country of OriginTurkey
PumpTypetwo-way entrance
Drive Typeelectric
Type of configurationwithout engine
Warranty, months12
Weight, kg700
