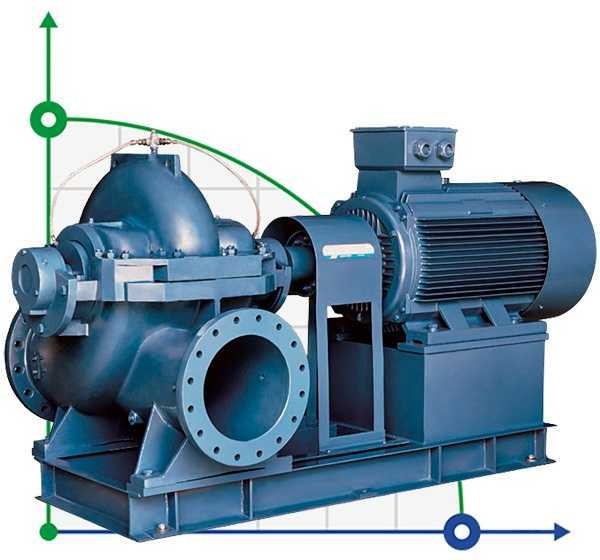

BSSM4 350-590A1, (1000) - double-sided inlet pump unit, analogue of D 4000-95A-2

Code: 1023503
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour90
Feed height, m4000
Power capacity, kW1250
Materialcast iron
Input pipe diameter500
Output pipe diameter350
Rate of turn, rpm1 000
Power supply6000 V
Max.flow rate, m3/h90
Max. head, m4000
Impeller materialcast iron
Country of OriginChina
PumpTypetwo-way entrance
Drive Typeelectric
Type of configurationwith engine
Warranty, months12
Show all features (17)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$99,746.98 (netto)
Добавить в сравнение
We deliver anywhere in the world
The BSCM double-sided inlet pump unit, an analogue of the D 4000-95A-2 pumps, is suitable for pumping liquids that do not contain solid inclusions by weight of more than 0.05%, size of more than 0.2 mm, microhardness of more than 6.5 GPa (650 kgf / mm2), is not chemically aggressive with respect to the materials from which the pump is made. Materials: body - cast iron with anti-corrosion coating; shaft - chrome-plated steel; seals - mechanical seal. Pumps with a detachable housing are recommended for use in water supply systems, sewage treatment plants, pressure boosting plants, fire extinguishing plants, irrigation, for water circulation in air conditioning systems, agriculture. The main difference between BSCM type pumps and other centrifugal pumps is the feature of fluid supply to the impeller. Suction occurs in such a way that the liquid enters the impeller of the blade type from both sides. Physically, this is done in order to compensate for the axial force, which, in the case of a one-way fluid supply, affects the impeller in one direction. With insignificant pump parameters, it does not matter. Therefore, pumps of this type are designed specifically for tasks where the pump must have high performance. The second advantage of the two-way inlet pumps is that they have suction and discharge pipes arranged so that the liquid is supplied and discharged horizontally, and not at an angle of 900, as is done in most centrifugal pumps.. This advantage lies in the fact that it is easier to install such pumping units. Another advantage of the design of the BSCM two-way inlet pumps is that the pump part is easily disassembled - the upper cover is bolted, and not poured entirely as a single body, it happens in almost all models of centrifugal pumps. This makes it possible to repair and maintain the pumping part on site without dismantling the unit from the pipeline.
ProducerBTS Engineering
Pump capacity, cu.m/hour90
Feed height, m4000
Power capacity, kW1250
Materialcast iron
Input pipe diameter500
Output pipe diameter350
Rate of turn, rpm1 000
Power supply6000 V
Max.flow rate, m3/h90
Max. head, m4000
Impeller materialcast iron
Country of OriginChina
PumpTypetwo-way entrance
Drive Typeelectric
Type of configurationwith engine
Warranty, months12

Download instructions, catalog for BSSM4 350-590A1, (1000) - double-sided inlet pump unit, analogue of D 4000-95A-2
