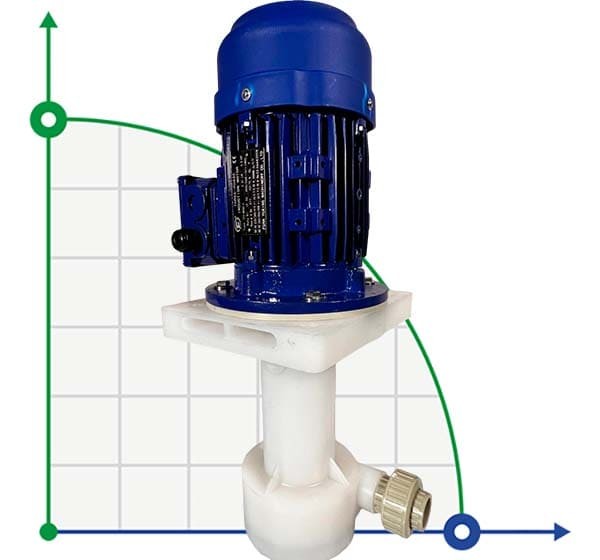

QP-25SK-1/25VP, CFRETFE-0,37 kW, 150L/min, 8m electrolyte pump

Code: 1023100
(0 review)
Length of immersed part298
ProducerQeehua
Pump capacity, cu.m/hour9
Feed height, m8
Power capacity, kW0,37
MaterialCFRETFE
Input pipe diameter40
Output pipe diameter25
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h9
Max.temperature, C90
Max. head, m8
ModelQP-25SK-0,37kW
Dimensions, mm261x230x533
Serial number of the pumpQP
PumpTypesemi-submersible
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Weight, kg20
Show all features (20)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1,640.85 (netto)
Добавить в сравнение
We deliver anywhere in the world
Pump for electroplating, electrolytes, acids, alkali semi-submersible or external installation, electrolyte, preparation of SIP (Sip), aggressive liquids-also found wide application in filtration installations, purification of chemically active acids, alkalis. Vertical centrifugal pump QP-25SK, CFRETFE-0,37 kW, 150L/min, 8m. Material: CFRETFE Pump installation-semi-submersible, external installation. The semi-submersible pump can be installed outdoors or in a convenient place, which allows you to provide the filtration supply system with compact dimensions, convenient maintenance and control. Pump materials, depending on the technology requirements, are presented in various options for selection. - extended warranty - maintenance and delivery of spare parts It can be equipped with an explosion-proof ex engine. Control the temperature regime when mixing chemical liquids to prevent pump failure.
Length of immersed part298
ProducerQeehua
Pump capacity, cu.m/hour9
Feed height, m8
Power capacity, kW0,37
MaterialCFRETFE
Input pipe diameter40
Output pipe diameter25
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h9
Max.temperature, C90
Max. head, m8
ModelQP-25SK-0,37kW
Dimensions, mm261x230x533
Serial number of the pumpQP
PumpTypesemi-submersible
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Weight, kg20
