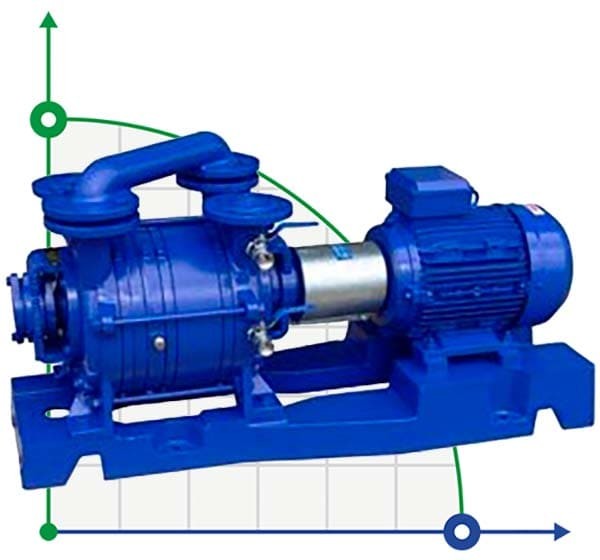

Water-ring vacuum pumps of the PW1-21 – PW5-24 series are two-stage vacuum pumps, the main feature of which, unlike single-stage pumps, is the achievement of a deeper vacuum (33-40 mbar abs.). Maximum performance and efficiency in the range from 100-200 mbar. abs. These pumps have a built-in anti-cavitation valve between the stages. They are reliable, easy to maintain, they can be used to pump out almost any gas medium or steam. Vacuum pumps are designed for suction and pumping of dry gas with a temperature of up to 150°C and vapor-saturated gases, characterized in that their temperature does not exceed 100°C, with the possibility of using working fluids with a viscosity of up to 60 mm2 / sec and a density of 800-1200 kg/m3, the water temperature at the pump outlet should not exceed 80°C. Hydro-Vacuum produces single-stage and two-stage vacuum water ring pumps, PW series. In the PW series pumps, the pump and the motor are mounted on a common support. The torque from the motor is transmitted to the impeller through a shaft mounted in the support bearings and an elastic coupling. This design makes the vacuum pump noticeably longer and heavier, but it significantly facilitates its maintenance when it is necessary to disassemble the pump or replace the engine. In addition, the pump is mounted on 2 supports (the impeller between the bearings), which gives a much longer service life of the pumps than a monoblock (mounted on the motor shaft or the landing of the impeller)
Standard material design of pumps: pump body, links-cast iron 250; rotor-tin bronze B101; shaft-steel 2H13 (AISI 420).
If the customer needs and wishes, the material execution may be different. The housings are chrome-plated cast iron, tin-plated bronze, carbon cast steel, austenitic cast steel; The rotor is spheroidal cast iron, austenitic cast steel, carbon cast steel, special austenitic cast steel. The shaft is acid-resistant steel. Each pump can have a complete set with different engines (kW) in terms of power, if the customer needs, we make the selection on an individual basis.
