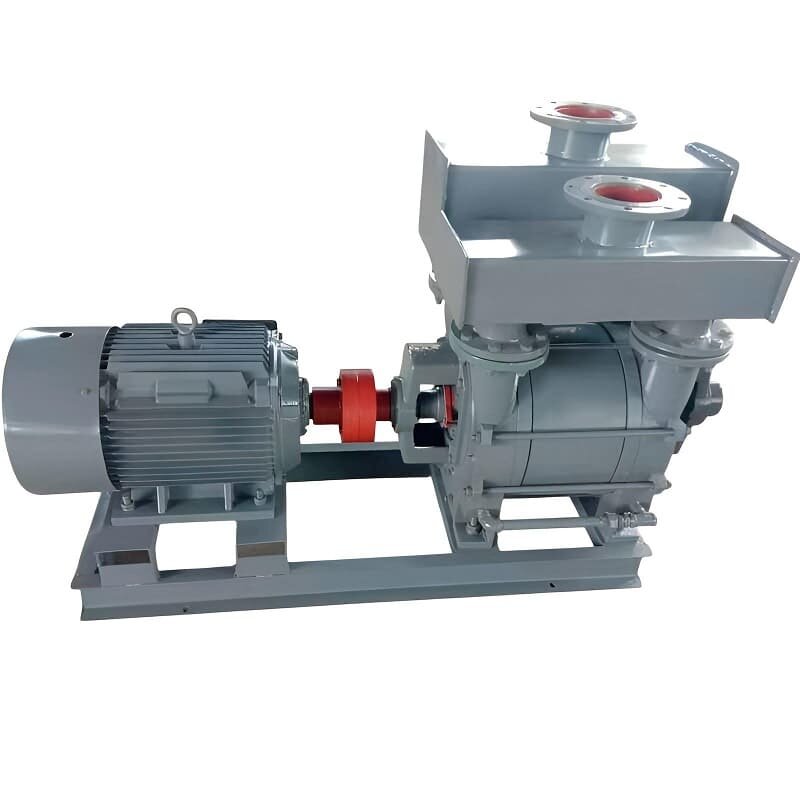

Vacuum pump 2BE202 Ex 22kW 380V 50Hz

Code: 1050957
(0 review)
ProducerBTS Engineering
Input pipe diameterDN100
Output pipe diameterDN100
Rate of turn, rpm970
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h760
SealС-одинарное сальниковое уплотнение
Vacuum depth, mBar33
Flow, l/min15
Housing materialСast iron
Country of OriginChina
PumpTypevacuum
Drive Typeelectric
Installation Typehorizontal
Weight, kg875
Show all features (16)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$5,926 (netto)
Добавить в сравнение
We deliver anywhere in the world
The 2BE series water ring vacuum pump is used to suck air or other aggressive, water-insoluble gases that are free of solid particles to create a vacuum in hermetically sealed vessels. The suction gas may be allowed to contain small amounts of liquid. Recommended pump operating pressure range: 0.04 MPa - 0.09 MPa. Such pumps are mainly used in the chemical, petrochemical, light industry, pharmaceutical, paper, metallurgy, building materials, electrical appliances, food, coal preparation, ore dressing, fertiliser and other industries. When equipped with an explosion-proof electric motor, the vacuum pump can be used to suck flammable and explosive gases, and when the vacuum pump body is made of corrosion-resistant material, it can be used to suck corrosive gases.
Category: Vacuum pump
ProducerBTS Engineering
Input pipe diameterDN100
Output pipe diameterDN100
Rate of turn, rpm970
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h760
SealС-одинарное сальниковое уплотнение
Vacuum depth, mBar33
Flow, l/min15
Housing materialСast iron
Country of OriginChina
PumpTypevacuum
Drive Typeelectric
Installation Typehorizontal
Weight, kg875

Download instructions, catalog for Vacuum pump 2BE202 Ex 22kW 380V 50Hz
