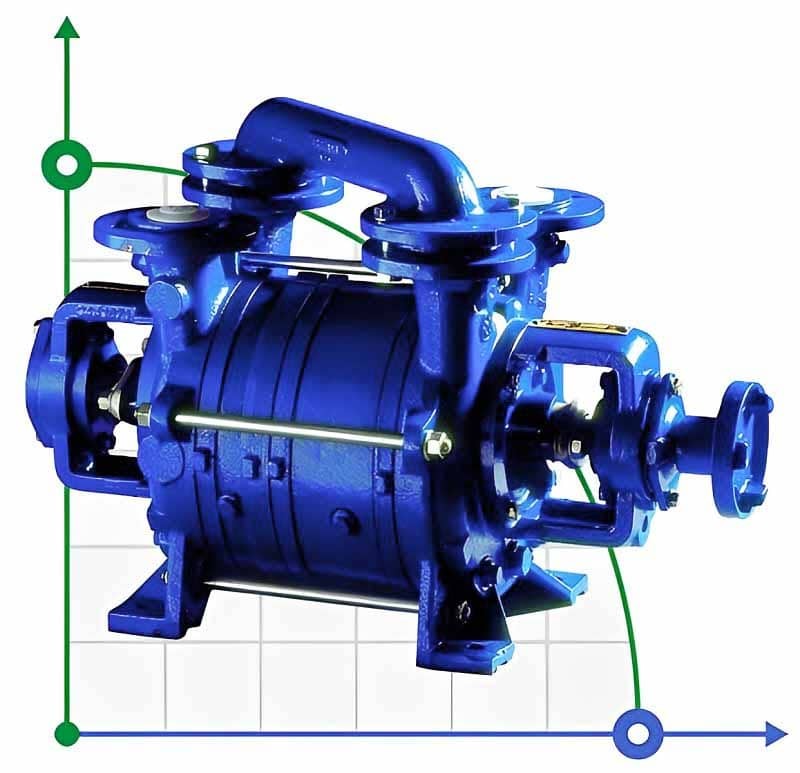

Vacuum pump PW.7.14.1.1100.1 without motor, frame and coupling

Code: 1039686
(0 review)
ProducerHydro-Vacuum
Pump capacity, m3/h1500
Power capacity, kW45
Materialcast iron
Rate of turn, rpm1 000
Explosion protectionNo
Max.flow rate, m3/h1500
SealMechanical Seal
Shaft materialAISI 420
Impeller materialbronze
Vacuum depth, mBar213
Housing materialСast iron
Serial number of the pumpPW
Country of OriginPoland
PumpTypevacuum
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Weight, kg550
Show all features (19)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$17,032 (netto)
Добавить в сравнение
We deliver anywhere in the world
Water ring vacuum pumps of the PW.7.14 series are single-stage vacuum pumps. They are designed for suction and pumping of dry gas with a temperature of up to 150°С and gases saturated with vapors, distinguished by the fact that their temperature does not exceed 100°С, with the possibility of using working fluids with a viscosity of up to 60 mm 2 / sec and a density of 800 - 1200 kg / m3, the water temperature at the pump outlet should not exceed 80°С. In pumps of the PW series, the pump and motor are mounted on a common support. Torque from the engine is transmitted to the impeller through a shaft installed in support bearings and an elastic coupling. This design makes the vacuum pump significantly longer and heavier, but due to this, it significantly facilitates its maintenance when disassembling the pump or replacing the motor is required. In addition, the pump is installed on 2 supports (impeller between bearings), which gives a longer service life.
Category: Vacuum pump
ProducerHydro-Vacuum
Pump capacity, m3/h1500
Power capacity, kW45
Materialcast iron
Rate of turn, rpm1 000
Explosion protectionNo
Max.flow rate, m3/h1500
SealMechanical Seal
Shaft materialAISI 420
Impeller materialbronze
Vacuum depth, mBar213
Housing materialСast iron
Serial number of the pumpPW
Country of OriginPoland
PumpTypevacuum
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Weight, kg550
