The advantage of this type of Seal is its ease of installation and operation, as well as its versatility of use.

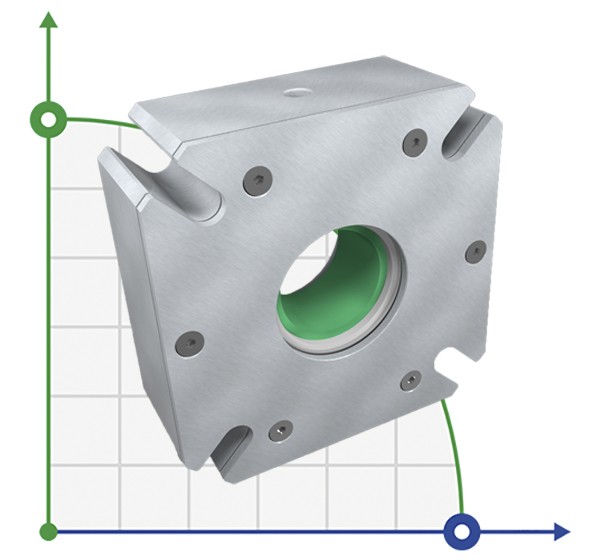

PALM type mechanical seals are used for liquid, bulk and gaseous products. They can be installed on open tanks, pressure tanks and under vacuum. For example, chemical reactors with agitators, inclined, vertical and horizontal
screw conveyors, belt blenders, cantilever agitators, and other industrial machines and installations where there is a need to seal shafts and axles.
A special feature of the seal is the ability to work with significant radial vibrations of the shaft, as well as its angular deviations.
Technical specifications
1. The nominal shaft diameter is 60 mm*
2. Case material-anodized aluminum alloy D16
3. The sealing sleeve material is EPDM
4. The material of the disks is fluoroplast 4
5. The temperature range is -20 ... +120 C
6. Shaft misalignment tolerance - 6 mm
7. The maximum shaft speed is 130 rpm.
8. The maximum pressure is 6 ATM (when purged with compressed air)
