Double mechanical seal for pump shaft WQ R-208 35, CAR/SIC/CAR/SIC, EPDM, 304

Code: 1052666
(0 review)
Stationary and rotating faceCAR/SIC/CAR/SIC
Material of metal partAISI 304 stainless steel
Shaft diameter35
Outer diameter of the fixed ring, mm50
ProducerBTS Engineering
Rate of turn, rpm3 000
Operating temperature-20°C + 80°C
Pressure0,16 MPa
Rubber typeEPDM
Seal typeR-208
ApplicationWQ, APC, Gnom, Zenit, Opera, Ebara, Calpeda
Gross weight, kg0.2
Length of transport packing, cm6,5
Width of transport packing, cm6,5
Height of transport packing, cm6,5
Show all features (15)
Warehouse Ukraine: In stock
Warehouse Poland: Pre-order only
Warehouse Germany: Pre-order only
Warehouse Italy: Pre-order only
$66 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
Double mechanical seal R-208 is used at temperatures from -20 to + 120°C, with a pressure of up to 0.5 MPa and a speed of up to 3000 rpm. They are used in drainage, fecal, deep pumps, submersible electric pumps, pumps of the WQK series: - WQK35-10-3; - WQK70-10-5.5; - WQK50-10-4. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Stationary and rotating faceCAR/SIC/CAR/SIC
Material of metal partAISI 304 stainless steel
Shaft diameter35
Outer diameter of the fixed ring, mm50
ProducerBTS Engineering
Rate of turn, rpm3 000
Operating temperature-20°C + 80°C
Pressure0,16 MPa
Rubber typeEPDM
Seal typeR-208
ApplicationWQ, APC, Gnom, Zenit, Opera, Ebara, Calpeda
Gross weight, kg0.2
Length of transport packing, cm6,5
Width of transport packing, cm6,5
Height of transport packing, cm6,5
Loading...
Products from the same category
Double mechanical seal for pump shaft WQ, Gnom R-208 25, CAR/SIC/SIC/SIC, NBR, 304
1052661
Stationary and rotating face
CAR/SIC/SIC/SIC
Material of metal part
AISI 304 stainless steel
In stock
0
$37
Double mechanical seal for pump shaft R-208 25, SIC/SIC/SIC/SIC, VITON, 304, G9
1052662
Stationary and rotating face
SIC/SIC/SIC/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$42

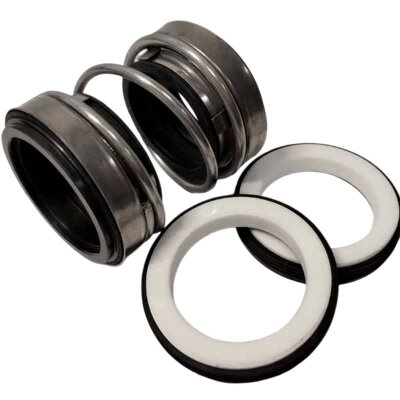

Double shaft seal for WQ pump, Speroni R-208 30, CER/CAR/CER/CAR, EPDM, 304
1052663
Stationary and rotating face
CER/CAR/CER/CAR
Material of metal part
AISI 304 stainless steel
Preorder
0
$51
Double mechanical seal for pump shaft R-208 30, SIC/SIC/SIC/SIC, NBR, 304
1052664
Stationary and rotating face
SIC/SIC/SIC/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$55
Double mechanical shaft seal R-208 30, SIC/SIC/SIC/SIC, VITON, 304, G9
1052665
Stationary and rotating face
SIC/SIC/SIC/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$63
Double mechanical seal for pump shaft R-208 35, SIC/SIC/SIC/SIC, VITON, 304, G9
1052667
Stationary and rotating face
SIC/SIC/SIC/SIC
Material of metal part
AISI 304 stainless steel
Preorder
0
$87

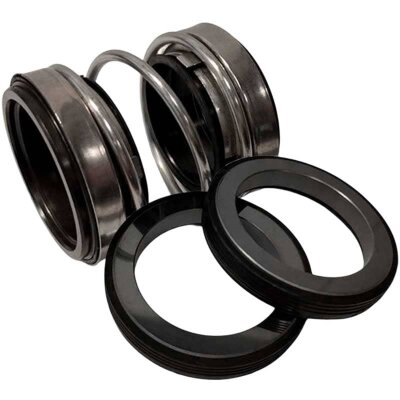

Double mechanical seal for pump shaft WQ R-208 40, CAR/SIC/CAR/SIC, EPDM, 304
1052668
Stationary and rotating face
CAR/SIC/CAR/SIC
Material of metal part
AISI 304 stainless steel
In stock
0
$101

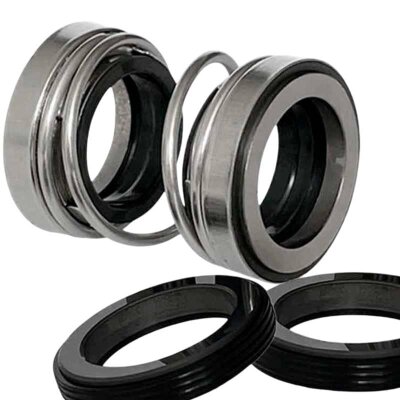

Double shaft seal for WQ pump, Speroni R-208 40, SIC/SIC/SIC/SIC, VITON, 304, G9
