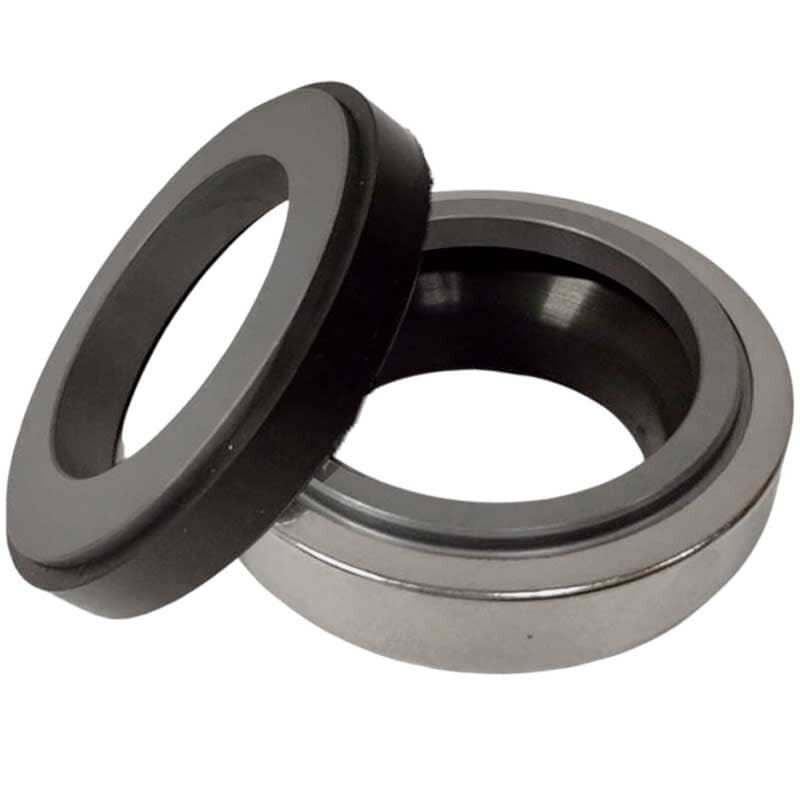

Mechanical seal for pump R-BT-AR 35, SIC/SIC, VITON, 304

Product list

Home
Mechanical seal for the pump
Elastomer bellows mechanical seals
R-BT-AR
Mechanical seal for pump R-BT-AR 35, SIC/SIC, VITON, 304

Mechanical seal for pump R-BT-AR 35, SIC/SIC, VITON, 304

Click image for a larger view

More +4

Code: 1053530

(0 review)

Stationary and rotating face	SIC/SIC
Material of metal part	AISI 304 stainless steel
Shaft diameter	35
Outer diameter of the fixed ring, mm	63
Producer	BTS Engineering
Operating temperature	-20°C + 150°C
Pressure	0,4 MPa
Rubber type	VITON
Rotation velocity	10 m/s
Seal type	R-BT-AR
Application	Kenle, Nocchi, Omnigena, Pentax, Speck pumpen, Johnson pump, Caprari, Bronzoni, VARISCO, LOWARA, Calpeda, Pedrollo, Zenit, WILO, Inoxpa, Aquatechnika, Speroni, AL-KO, Aquaria, Kripsol, Grundfos, VODOLEY, Vorskla, Packo, VAC, VARAN, SAER
Analogue for	Latty T750, Anga C10, US SEAL VGMA, Vulcan 18, Roten 37B/L5, Flowserve 118, Sterling BT, LIDERING AR / LRB31, John Crane PR/DR, Burgmann BT-AR, AESSEAL B01, Hermetica М212.NC
Gross weight, kg	0.2
Length of transport packing, cm	6,5
Width of transport packing, cm	6,5
Height of transport packing, cm	6,5

Show all features (16)

Documentation

Description Mechanical seal for pump R-BT-AR 35, SIC/SIC, VITON, 304

Single mechanical seal (stuffing gland) with rubber bellows and arbitrary direction of rotation. Seals with reduced installation length are widely used in serial production of water pumps, household pumps for home and garden, washing machines, submersible and vortex pumps. Can be used in pumps AL-KO, Calpeda (MXP, MGP, NGL), Kripsol, Pedrolo (JCR, PRO-NGA 1A) article 11516101203, Grundfos JP Basic 4 PT, PACKO, and others. Analogue of mechanical seals: Burgmann BT-AR, AESSEAL B01, Vulcan 18, Anga C10, Hermetic M212.NC. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum

Features Mechanical seal for pump R-BT-AR 35, SIC/SIC, VITON, 304

Stationary and rotating face	SIC/SIC
Material of metal part	AISI 304 stainless steel
Shaft diameter	35
Outer diameter of the fixed ring, mm	63
Producer	BTS Engineering
Operating temperature	-20°C + 150°C
Pressure	0,4 MPa
Rubber type	VITON
Rotation velocity	10 m/s
Seal type	R-BT-AR
Application	Kenle, Nocchi, Omnigena, Pentax, Speck pumpen, Johnson pump, Caprari, Bronzoni, VARISCO, LOWARA, Calpeda, Pedrollo, Zenit, WILO, Inoxpa, Aquatechnika, Speroni, AL-KO, Aquaria, Kripsol, Grundfos, VODOLEY, Vorskla, Packo, VAC, VARAN, SAER
Analogue for	Latty T750, Anga C10, US SEAL VGMA, Vulcan 18, Roten 37B/L5, Flowserve 118, Sterling BT, LIDERING AR / LRB31, John Crane PR/DR, Burgmann BT-AR, AESSEAL B01, Hermetica М212.NC
Gross weight, kg	0.2
Length of transport packing, cm	6,5
Width of transport packing, cm	6,5
Height of transport packing, cm	6,5
