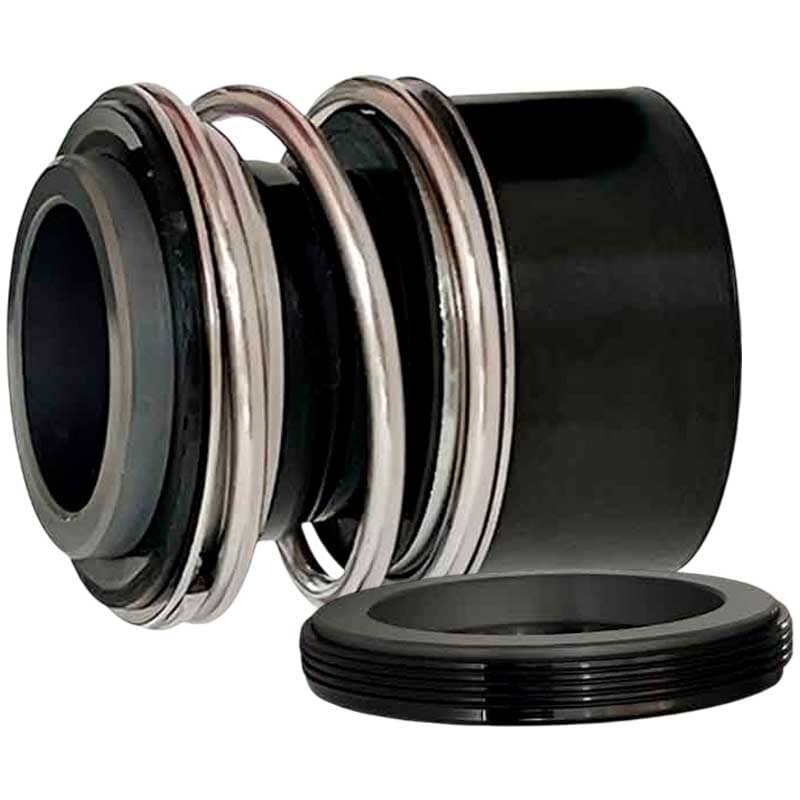

Mechanical shaft seal R-MG13 45, SIC/SIC, EPDM, 304, G60

Single Mechanical shaft seal R-MG13 with elastomer bellows, without unloading, with a central spring, independent of the direction of rotation of the shaft. It is used at temperatures from -20 to + 140°C, with a pressure of up to 1.6 MPa and a rotation speed of up to 10 m/s. It has identical dimensions to R-MG1, but with an extended cylindrical part of the bellows to ensure the installation length. It is used in centrifugal pumps, mixers and other equipment. Pumped substances - water, dairy products, juices, etc. Used in the following types of Grundfos pumps: R-MG13-28, G6: - Grundfos NB 32, NB 40, NB 50, NB 65, NB 80, NB 100. Grundfos article: 96488302, 96548353, 98434904, 98434905, 98670789, 96551963, 97769885, 96548351, 96658825, 96658827, 96658826, 96658828, 98670804, 96658829, 97769886, 96658830. R-MG13-38, G6: - Grundfos NB 40, NB 50, NB 65, NB 80, NB 100, NB 125, NB 150. Grundfos article: 96537605 , 96548357 , 98434906 , 98434908 , 98670790 , 96551928 , R-MG13-48 , G6: - Grundfos NB 80, NB 100, NB 125, NB 150. Grundfos article number: 96306472, 96658791, 98434909, 98434941, 98670801, 96658794, 97769889, 96658857, 96658860 . 98434943, 98434944 , 98670802 , 96658804 , 97769891 , 97769919 , 97769921 , 97769927 , 97769929 , 98670807 , 97769931 97769892. R-MG13-60, G6: - Grundfos NB 125, NB 150, NB 250. Grundfos article: 96658812, 96658815, 98434945, 98434947, 98670803, 96658818, 97769893, 97769920, 97769922 97769928 , 97769930 , 98670808 , 97769932 , 97769894. Also possible to use in pumps: Alfa Laval, Ebara, Lowara, KSB (Etanorm ETN 050-032-160, Etachrom), WILO (MVI, MHI, IPL , DPL), Saer (IP), Calpeda (GM, MXS), GNOM , KM, DAB, Johnson Pump, Foras, INOXPA and others. Analogue of mechanical seals: Burgmann MG13, Lidering M212.N13, DIMER TCP.13-60, AESSEAL B093U , B013, Flowserve 193, Roten L3N, Sterling SMG13, Vulcan 193. Catalog R-MG13 Mechanical seal for Wilo pump, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos, for KSB pump, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for SPERONI pump, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for Tuchenhagen pump, ALFA LAVAL, Donjoy, Mission Magnum.
