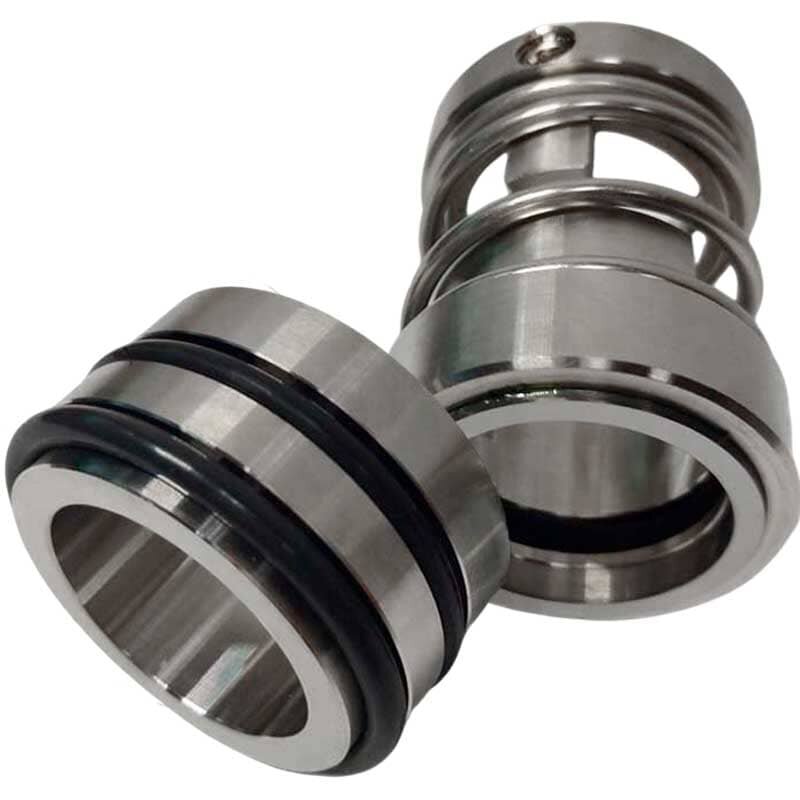

Mechanical shaft seal R-125 95, SIC/SIC, VITON, 316, T20LF

Mechanical shaft seal R-125 95, SIC/SIC, VITON, 316, T20LF

Click image for a larger view

More +3

Code: 1009100

(0 review)

Stationary and rotating face	SIC/SIC
Material of metal part	AISI 316 stainless steel
Shaft diameter	95
Outer diameter of the fixed ring, mm	120
Type of conta-ring	T20LF
Producer	BTS Engineering
Operating temperature	-20°C +180°C
Pressure	1.2 MPa
Rubber type	VITON
Rotation velocity	25 m / s
Seal type	R-125
Gross weight, kg	0.95
Length of transport packing, cm	13,5
Width of transport packing, cm	13,5
Height of transport packing, cm	12

Show all features (15)

Documentation

Description Mechanical shaft seal R-125 95, SIC/SIC, VITON, 316, T20LF

Mechanical seal R-125 is used at temperatures from -40 to + 120 ° C, with a pressure of up to 1.2 MPa and a rotation speed of up to 25 m / s. Mechanical seal for pumps Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos, for pumps KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pumps SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

Category: R-125

Features Mechanical shaft seal R-125 95, SIC/SIC, VITON, 316, T20LF

Stationary and rotating face	SIC/SIC
Material of metal part	AISI 316 stainless steel
Shaft diameter	95
Outer diameter of the fixed ring, mm	120
Type of conta-ring	T20LF
Producer	BTS Engineering
Operating temperature	-20°C +180°C
Pressure	1.2 MPa
Rubber type	VITON
Rotation velocity	25 m / s
Seal type	R-125
Gross weight, kg	0.95
Length of transport packing, cm	13,5
Width of transport packing, cm	13,5
Height of transport packing, cm	12
